Description
Quick Specs
| Specification | Standard Version | Extended Version |
|---|---|---|
| Overall Length | 215 cm | 240 cm |
| Open Dimensions | 215 × 131 × 100 cm | 240 × 131 × 100 cm |
| Interior Dimensions | 190 × 125 × 90 cm | 215 × 125 × 90 cm |
| Hard Shell | Aluminum Alloy | Aluminum Alloy |
| Shell Color | Black | Black |
| Tent Fabric | 420D Oxford | 420D Oxford |
| Waterproof Rating | 3000 mm | 3000 mm |
| Opening Method | Electric Push Rod | Electric Push Rod |
| Power Supply | 12V Vehicle Connection | 12V Vehicle Connection |
| Remote Controls | 2 Included | 2 Included |
| Rated Load Capacity | 500 kg | 500 kg |
| Insulation | Optional | Included |
| Ladder | Optional | Optional |
Choose Between Standard and Extended Sizes
The product is available in two length configurations while maintaining the same 131 cm width and 100 cm deployed height.
Standard – 215 cm
The Standard version measures:
215 × 131 × 100 cm when opened
with an internal space of:
190 × 125 × 90 cm
This configuration keeps the overall tent length at 215 cm while retaining the same aluminum shell, electric opening system, waterproof fabric and remote-control operation as the Extended model.
An insulation liner is available as an optional upgrade.
Extended – 240 cm
The Extended version increases the overall length to:
240 × 131 × 100 cm
with an internal space of:
215 × 125 × 90 cm
The additional 25 cm of interior length makes this version suitable for buyers who prioritize a longer sleeping compartment or require additional interior space.
An insulation liner is included as standard with the Extended configuration.
If you are still comparing wedge, pop-up and other hard-shell formats, see our guide to hard shell rooftop tent design types.

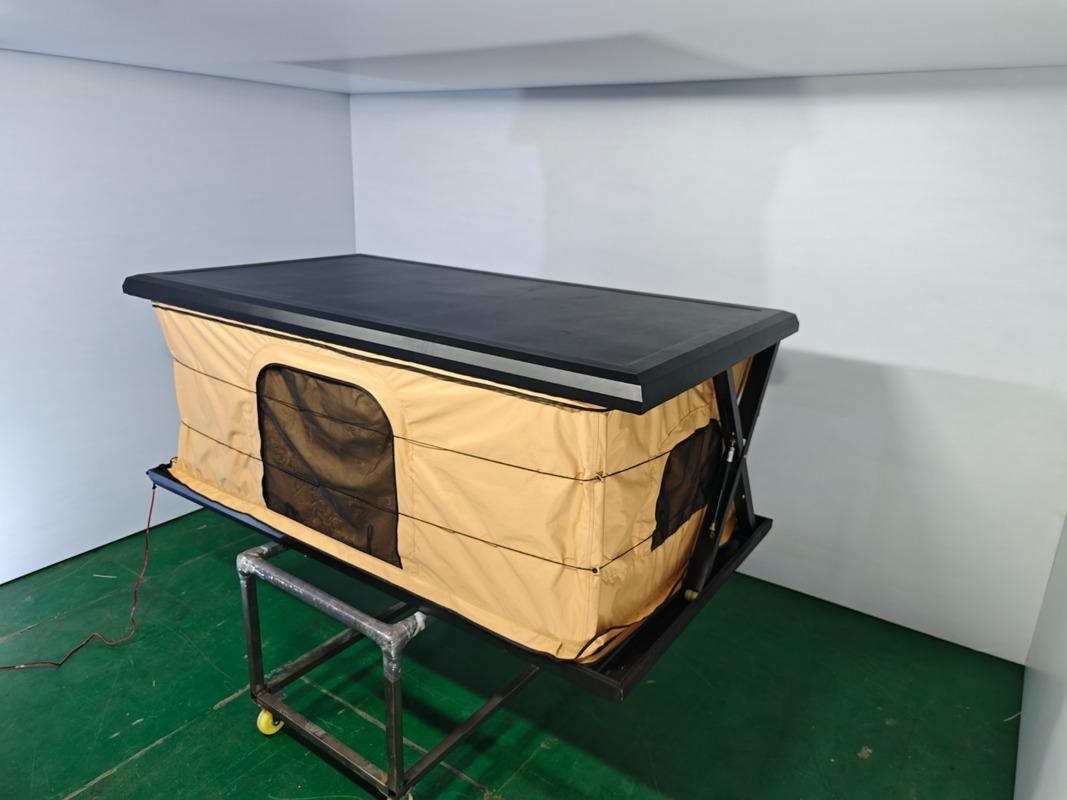

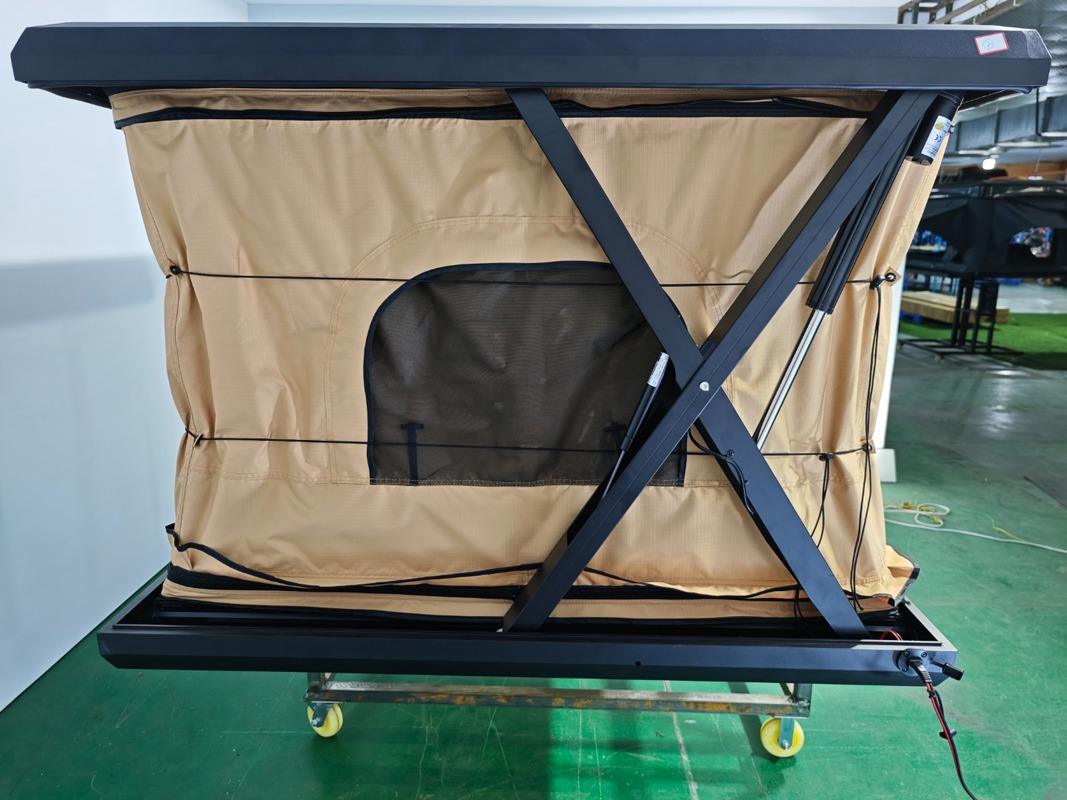

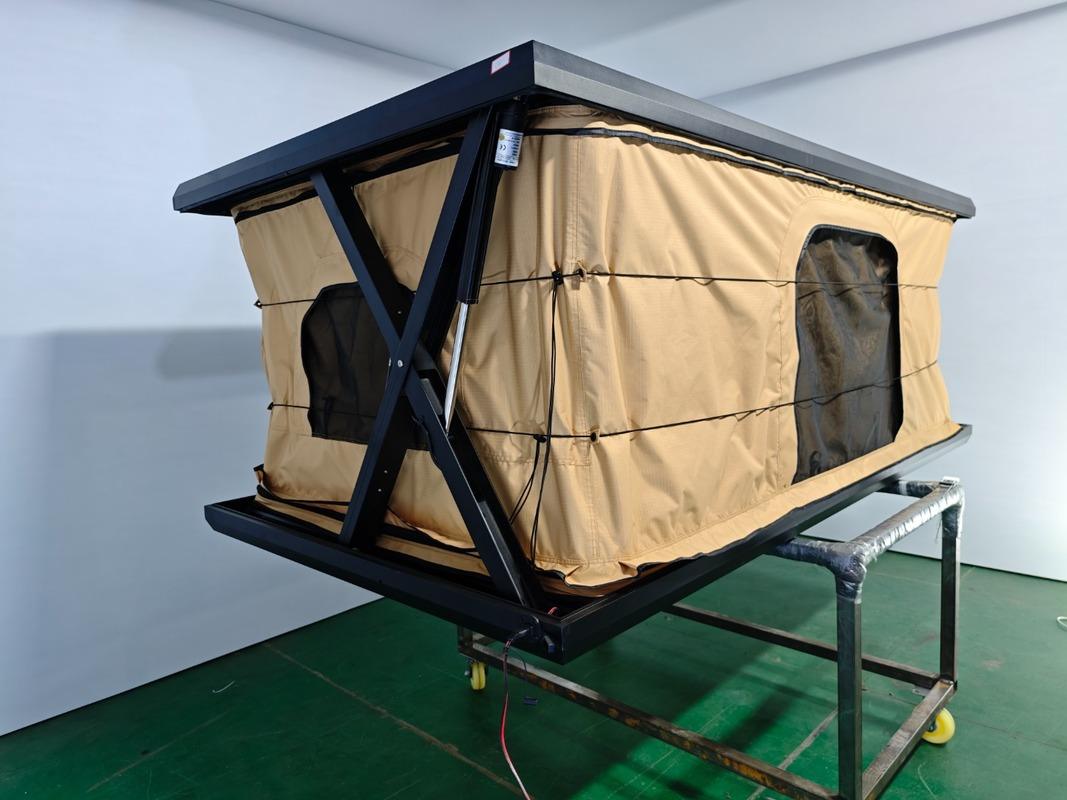

Electric Opening & Closing System
Unlike a manual hard-shell rooftop tent, this model uses electric push rods for both opening and closing.
The supplied remote controls allow the user to operate the powered mechanism without manually lifting the shell.
Each tent includes:
- 2 remote controls
- Dedicated 12V cigarette-lighter power cable
- Electric push-rod opening and closing system
This powered design is one of the defining features of the tent and distinguishes it from conventional gas-strut or manually operated hard-shell models.
No specific opening or closing time is claimed because no verified timing data is currently available.
12V Vehicle Power Connection
The electric opening system is powered using the included 12V cigarette-lighter power cable.
This allows the tent’s powered mechanism to connect directly to a compatible vehicle 12V power outlet during operation.
The supplied information does not specify current draw, wattage or fuse requirements, so buyers should confirm electrical compatibility before installation and use.

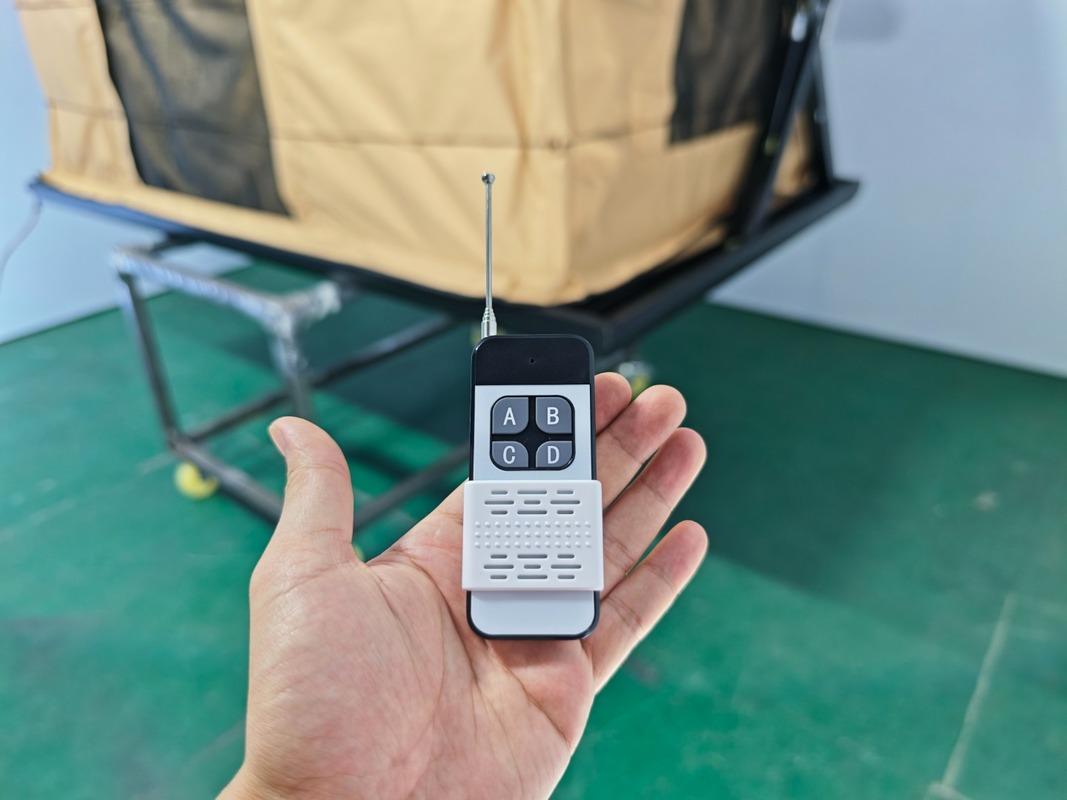

Two Remote Controls Included
Two remote controls are supplied as standard.
This provides both a primary and secondary controller for operating the electric opening and closing mechanism.
The controls are used specifically for the powered tent-opening system.

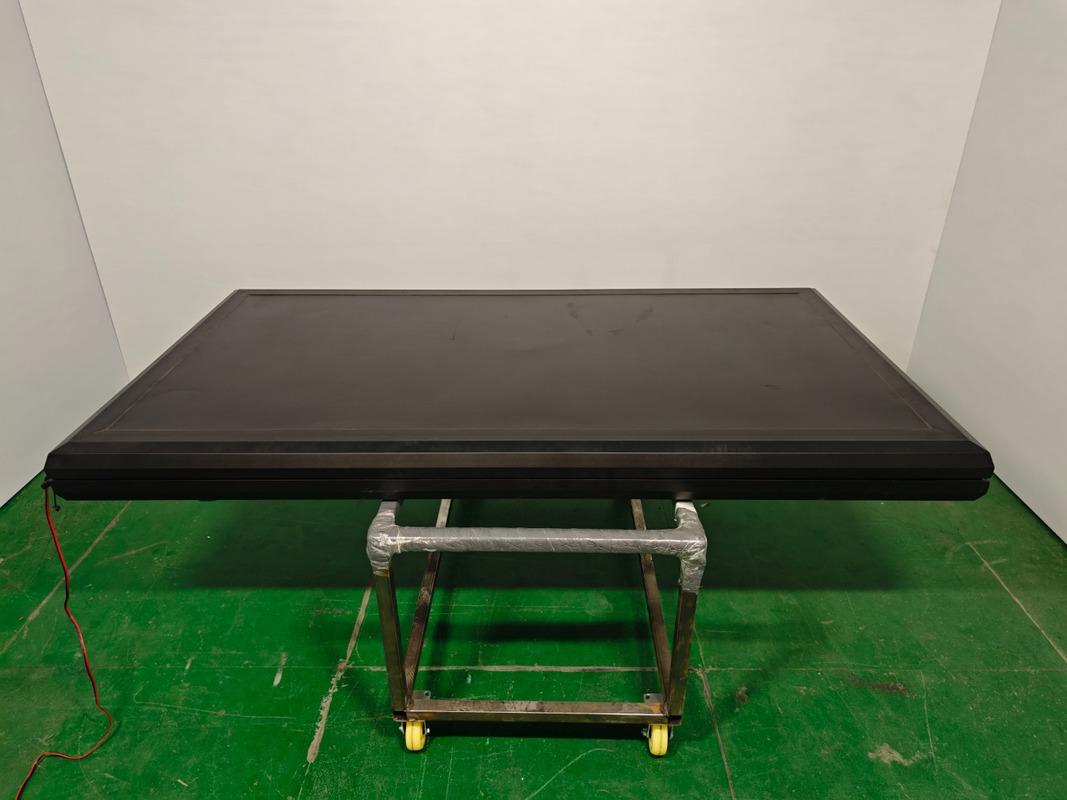

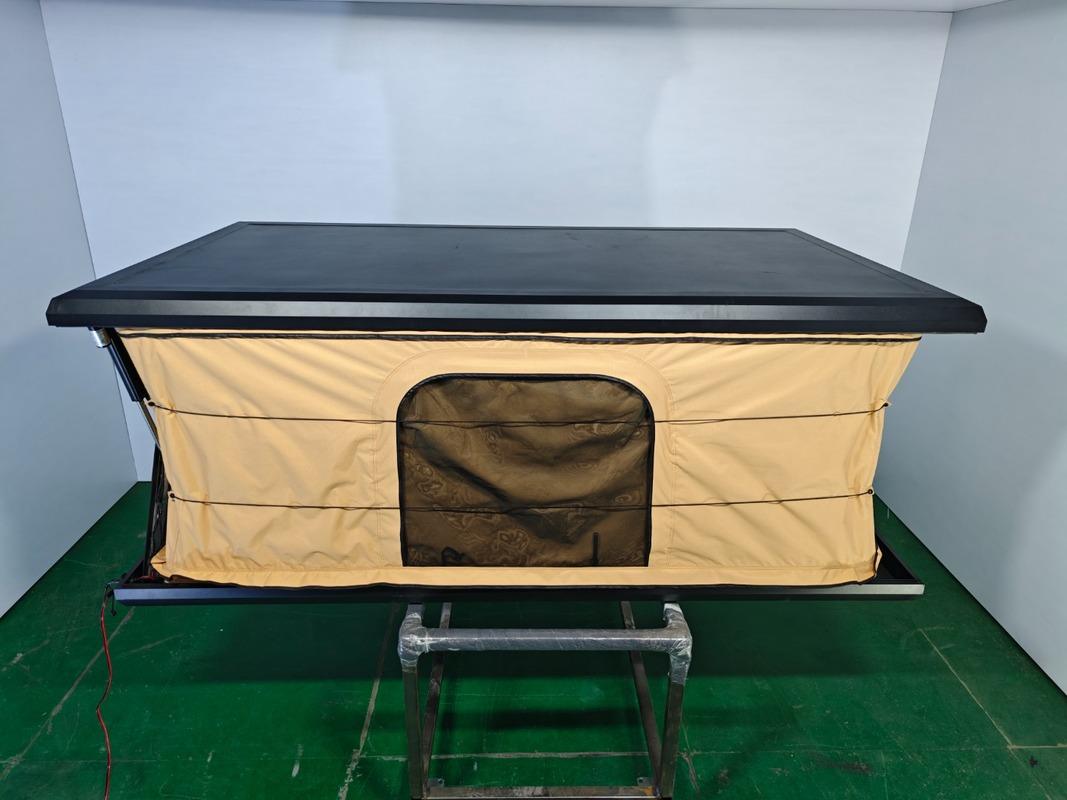

Full Aluminum Hard Shell Construction
This electric hard shell rooftop tent uses aluminum alloy for both the upper and lower hard-shell structure.
The shell is finished in black and may be customized with a customer logo for OEM projects.
The aluminum construction encloses the folded tent body during transport and provides the rigid exterior structure for the product.
The internal frame is also made from aluminum alloy.
For buyers comparing shell materials, our ABS vs aluminum rooftop tent guide explains the main differences in structure, weight, thermal behavior, and OEM considerations.
Explore our full range of hard shell rooftop tents for additional aluminum and ABS configurations.

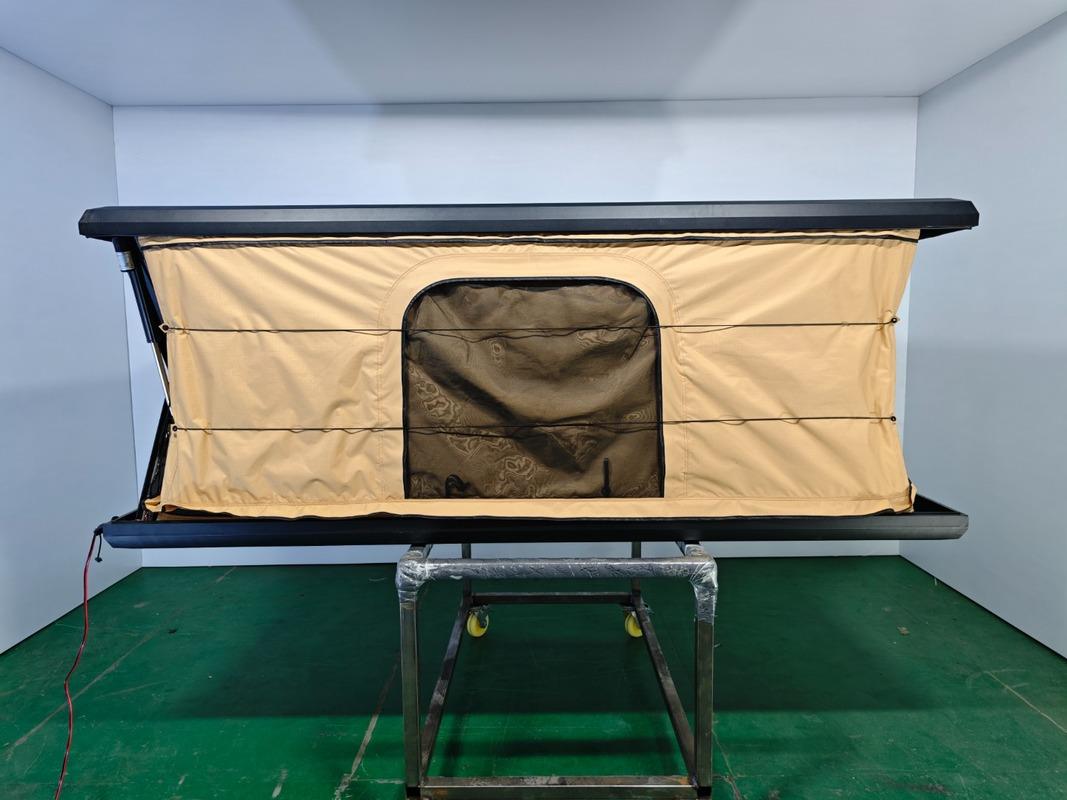

420D Oxford Fabric with PU3000 mm Waterproofing
The tent body uses 420D Oxford fabric with a polyurethane coating.
Manufacturer-specified fabric characteristics include:
- 3000 mm waterproof rating
- Wind resistance
- UV resistance
- Khaki standard fabric color
- Custom fabric colors available
The 3000 mm rating refers to the supplied tent-fabric specification.
No independent rain-test, storm rating, wind-speed rating or UV numerical rating is claimed.
200 g Colorfast Mesh
The tent uses 200 g colorfast mesh in its mesh sections.
The mesh supports ventilation while helping reduce insect entry through open windows or ventilation areas.
No environmental certification is claimed for the mesh material.
Rated Load Capacity
The manufacturer-specified tent load rating is:
500 kg
This figure refers to the tent’s rated load capacity.
It does not represent:
- vehicle dynamic roof-load capacity
- vehicle static roof-load capacity
- roof-rack capacity
- crossbar capacity
Always confirm the vehicle manufacturer’s roof-load limits and the rated capacity of the installed roof-rack system before fitting any rooftop tent.
Optional 2.6 m Aluminum Telescoping Ladder
A ladder is not included as standard with either version.
An optional:
2.6 m aluminum telescoping ladder
is available for buyers who require external ladder access.
This should be selected separately when ordering.

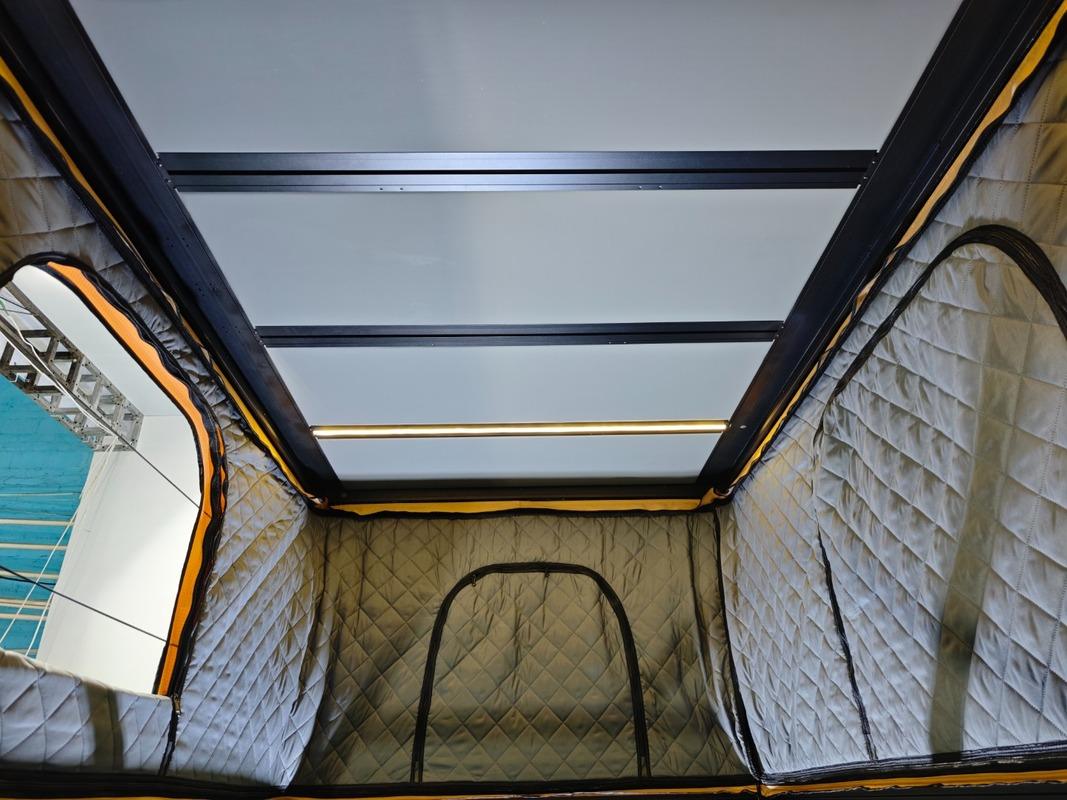

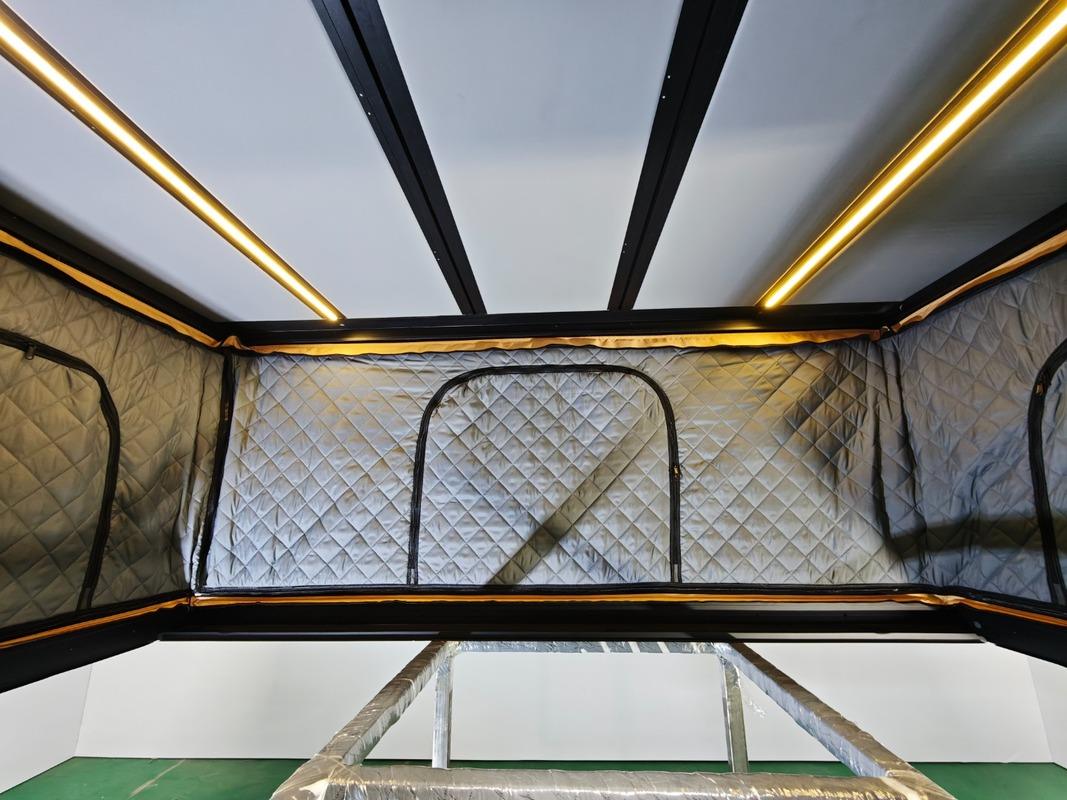

Insulation Options
Insulation configuration differs between the two versions.
Standard Version
Insulation liner:
Optional
This allows buyers to add insulation according to climate or project requirements.
Extended Version
Insulation liner:
Included as standard
This provides the Extended configuration with an additional standard interior feature beyond the increased length.
Optional Sunroof-Entry Configuration
A sunroof-entry configuration is available as an optional upgrade.
Because the current product information does not fully define the entry structure or vehicle-compatibility requirements, buyers should confirm the specific sunroof-entry configuration with Everlead before ordering.
This option should not be interpreted as a conventional roof skylight unless separately confirmed.
Standard Equipment
Both versions include:
- 2 remote controls
- Dedicated 12V cigarette-lighter power cable
- Electric opening and closing mechanism
The Extended version additionally includes:
- Insulation liner
Optional Upgrades
Available upgrade options include:
Standard Version
- Sunroof-entry configuration
- Insulation liner
- 2.6 m aluminum telescoping ladder
Extended Version
- Sunroof-entry configuration
- 2.6 m aluminum telescoping ladder
For OEM/ODM projects, logo application and fabric-color customization are also available.
Fabric Colors & OEM Customization
The standard tent-fabric color is:
Khaki
Custom fabric colors are available for OEM projects.
The black aluminum shell may also be customized with customer branding or logo application.
Available customization may include:
- Custom logo
- Custom tent-fabric color
- Size selection
- Insulation configuration
- Ladder configuration
- Sunroof-entry option
For large-volume or private-label projects, confirm final specifications before quotation and production.
Learn more about Everlead’s rooftop tent manufacturing capabilities, from product development and prototyping to production and quality control.
Everlead works as an OEM/ODM rooftop tent manufacturer for outdoor brands, wholesalers and distributors.
Standard vs Extended Comparison
| Feature | Standard 215 cm | Extended 240 cm |
|---|---|---|
| Overall Length | 215 cm | 240 cm |
| Open Dimensions | 215 × 131 × 100 cm | 240 × 131 × 100 cm |
| Interior Dimensions | 190 × 125 × 90 cm | 215 × 125 × 90 cm |
| Aluminum Hard Shell | Yes | Yes |
| Electric Opening & Closing | Yes | Yes |
| Remote Controls | 2 | 2 |
| 12V Power Cable | Included | Included |
| 420D Oxford Fabric | Yes | Yes |
| Waterproof Rating | 3000 mm | 3000 mm |
| Rated Load Capacity | 500 kg | 500 kg |
| Insulation | Optional | Standard |
| 2.6 m Ladder | Optional | Optional |
| Sunroof Entry | Optional | Optional |
| Custom Logo | Available | Available |
| Custom Fabric Color | Available | Available |
Complete Technical Specifications
| Specification | Standard Version | Extended Version |
|---|---|---|
| Product Type | Aluminum Electric Hard Shell Rooftop Tent | Aluminum Electric Hard Shell Rooftop Tent |
| Overall Size | 215 × 131 cm | 240 × 131 cm |
| Open Dimensions | 215 × 131 × 100 cm | 240 × 131 × 100 cm |
| Interior Dimensions | 190 × 125 × 90 cm | 215 × 125 × 90 cm |
| Hard Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shell Color | Black | Black |
| Logo Customization | Available | Available |
| Tent Fabric | 420D Oxford Fabric | 420D Oxford Fabric |
| Fabric Coating | PU | PU |
| Waterproof Rating | 3000 mm | 3000 mm |
| Fabric Characteristics | Wind-resistant, UV-resistant | Wind-resistant, UV-resistant |
| Standard Fabric Color | Khaki | Khaki |
| Custom Fabric Colors | Available | Available |
| Mesh | 200 g colorfast mesh | 200 g colorfast mesh |
| Frame | Aluminum Alloy | Aluminum Alloy |
| Rated Load Capacity | 500 kg | 500 kg |
| Opening Method | Electric Push-Rod Opening & Closing | Electric Push-Rod Opening & Closing |
| Remote Controls | 2 | 2 |
| Power Supply | Dedicated 12V cigarette-lighter cable | Dedicated 12V cigarette-lighter cable |
| Insulation | Optional | Included |
| Ladder | Optional 2.6 m aluminum telescoping ladder | Optional 2.6 m aluminum telescoping ladder |
| Sunroof Entry | Optional | Optional |
What’s Included
Standard Version
Included:
- Aluminum electric rooftop tent
- 2 remote controls
- Dedicated 12V cigarette-lighter power cable
Not included as standard:
- Ladder
- Insulation liner
- Sunroof-entry configuration
Extended Version
Included:
- Aluminum electric rooftop tent
- 2 remote controls
- Dedicated 12V cigarette-lighter power cable
- Insulation liner
Not included as standard:
- Ladder
- Sunroof-entry configuration
Vehicle & Roof Rack Compatibility
Before ordering, buyers should verify that the intended vehicle and roof-rack system are suitable for the selected tent.
Check:
- vehicle dynamic roof-load limit
- vehicle static roof-load limit
- roof-rack load capacity
- crossbar or mounting-system compatibility
- vehicle electrical compatibility with the supplied 12V connection
The supplied 500 kg tent load rating must not be used as a substitute for vehicle or rack load limits.
Because vehicle-specific fitment data is not currently supplied, compatibility should be confirmed before purchase.
FAQ
Is this an electric rooftop tent?
Yes. The tent uses electric push rods to open and close the hard shell.
How is the electric opening system powered?
The tent includes a dedicated 12V cigarette-lighter power cable for connection to a compatible vehicle power outlet.
How many remote controls are included?
Two remote controls are included with both the Standard and Extended versions.
What is the difference between the 215 cm and 240 cm versions?
The Standard model measures 215 cm in overall length and provides an interior size of 190 × 125 × 90 cm.
The Extended model measures 240 cm in overall length and provides an interior size of 215 × 125 × 90 cm.
The Extended version also includes an insulation liner as standard.
What is the hard shell made from?
The upper and lower hard-shell structure is made from aluminum alloy.
The shell is finished in black.
Can the aluminum shell be customized with a logo?
Yes. Logo customization is available for OEM projects.
What fabric is used?
The tent body uses 420D Oxford fabric with a PU coating.
How waterproof is the fabric?
The manufacturer-specified waterproof rating is 3000 mm.
Is the ladder included?
No.
A 2.6 m aluminum telescoping ladder is available as an optional accessory.
Is insulation included?
It depends on the version.
For the 215 cm Standard model, insulation is optional.
For the 240 cm Extended model, the insulation liner is included as standard.
Is a sunroof-entry option available?
Yes. A sunroof-entry configuration is available as an optional upgrade.
Vehicle-specific suitability should be confirmed before ordering.
What is the rated load capacity?
The manufacturer-specified tent load rating is 500 kg.
This is not the same as the vehicle’s roof-load capacity.
Can the fabric color be customized?
Yes.
Khaki is the standard fabric color, and custom fabric colors are available for OEM projects.
Does this product support OEM/ODM customization?
Yes.
Available customization may include logo application, fabric color, size selection and optional equipment configuration.
Request a Quote
Get Wholesale Price & MOQ
Need pricing for the Standard or Extended aluminum electric rooftop tent?
Send Everlead your required:
- Size: 215 cm or 240 cm
- Target quantity
- Logo requirements
- Fabric color
- Insulation requirements
- Ladder requirements
- Sunroof-entry requirements
We can provide quotation details for standard units, sample orders, wholesale orders and OEM/ODM projects.
Looking for a Fold-Out Alternative?
Compare our 3 person hard shell rooftop tent with an ABS fold-out X-Frame design.
