3 Person Hard Shell Rooftop Tent – ABS Fold-Out X-Frame

Description

Quick Specs

Comfortable for 2 Adults + 1 Child

While classified generally as a 3 person rooftop tent, its interior layout is best suited for two adults and one child. We provide the deployed open dimensions so buyers can accurately evaluate the available sleeping space and decide if the 252 × 160 × 130 cm open footprint meets their exact group requirements.

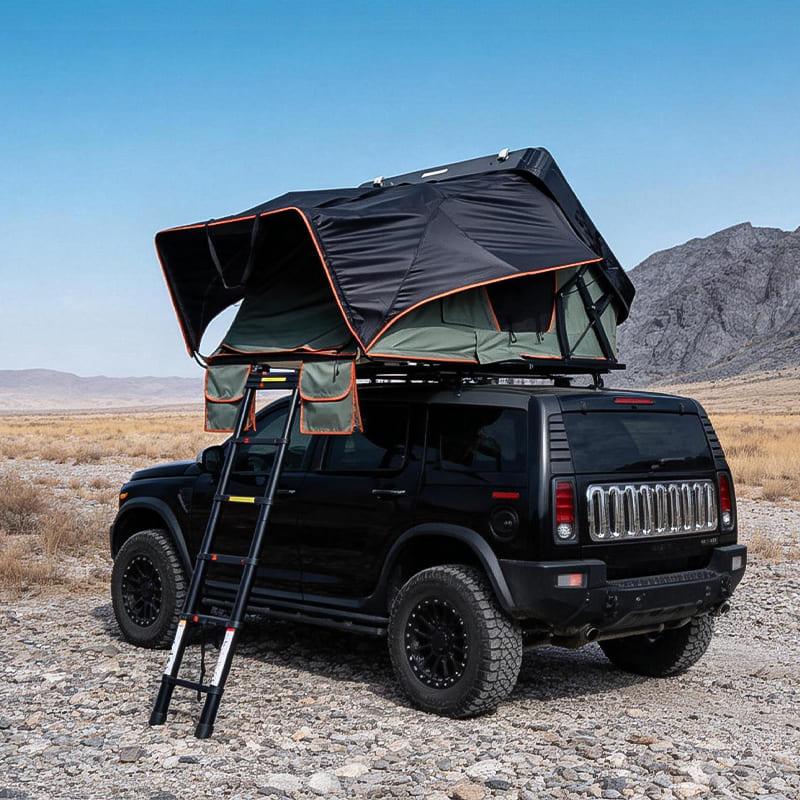

Why the Fold-Out Design Works for a 3-Person Layout

The core advantage of a fold out hard shell rooftop tent is its ability to minimize roof overhang during travel while maximizing usable interior room at the campsite. The tent expands from a 129 cm closed length on the vehicle roof to 252 cm when fully deployed, increasing the available interior footprint while maintaining a shorter packed length for travel. If buyers are still comparing wedge, pop-up and fold-out rooftop tents, see our guide to hard shell rooftop tent design types.

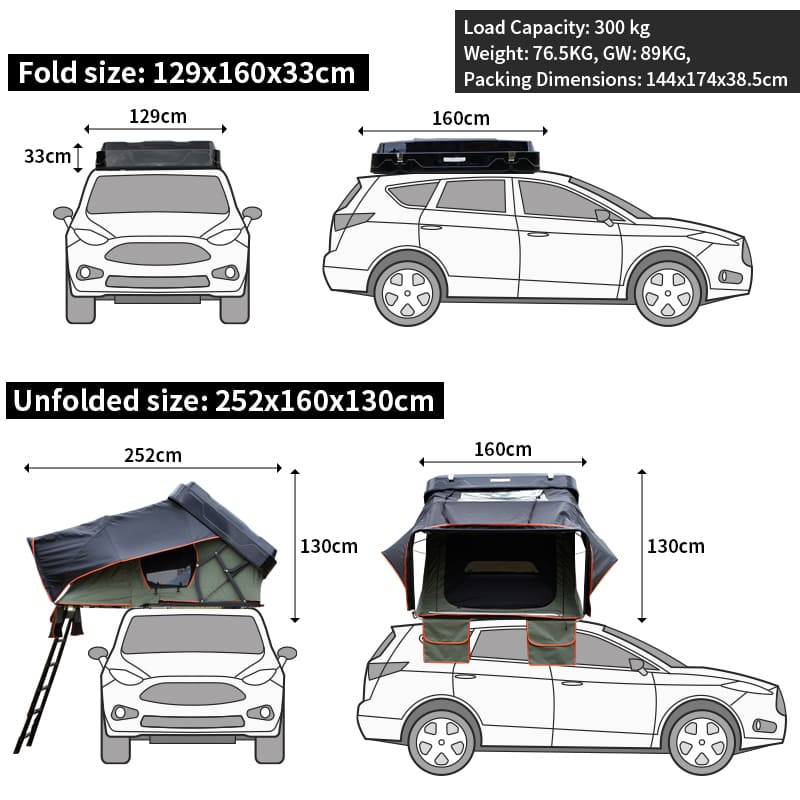

Open vs Closed Dimensions

Understanding the physical footprint is critical for installation planning.

• Open Dimensions: 252 × 160 × 130 cm (99.2 × 63.0 × 51.2 in)

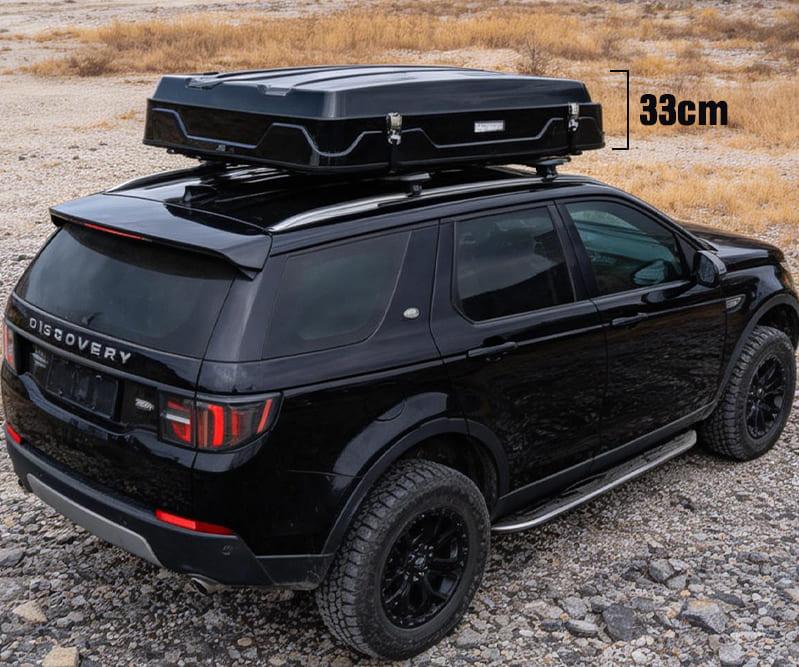

• Closed Dimensions: 129 × 160 × 33 cm (50.8 × 63.0 × 13.0 in)

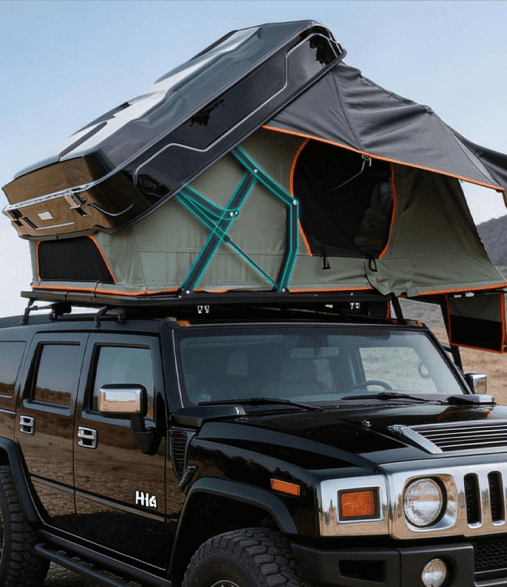

How the X-Frame Opening System Works

The tent uses an X-Frame cross-bracing structure to assist deployment. This scissor-like metal mechanism works with the assisted opening system to support the deployed tent structure and create additional interior headroom.

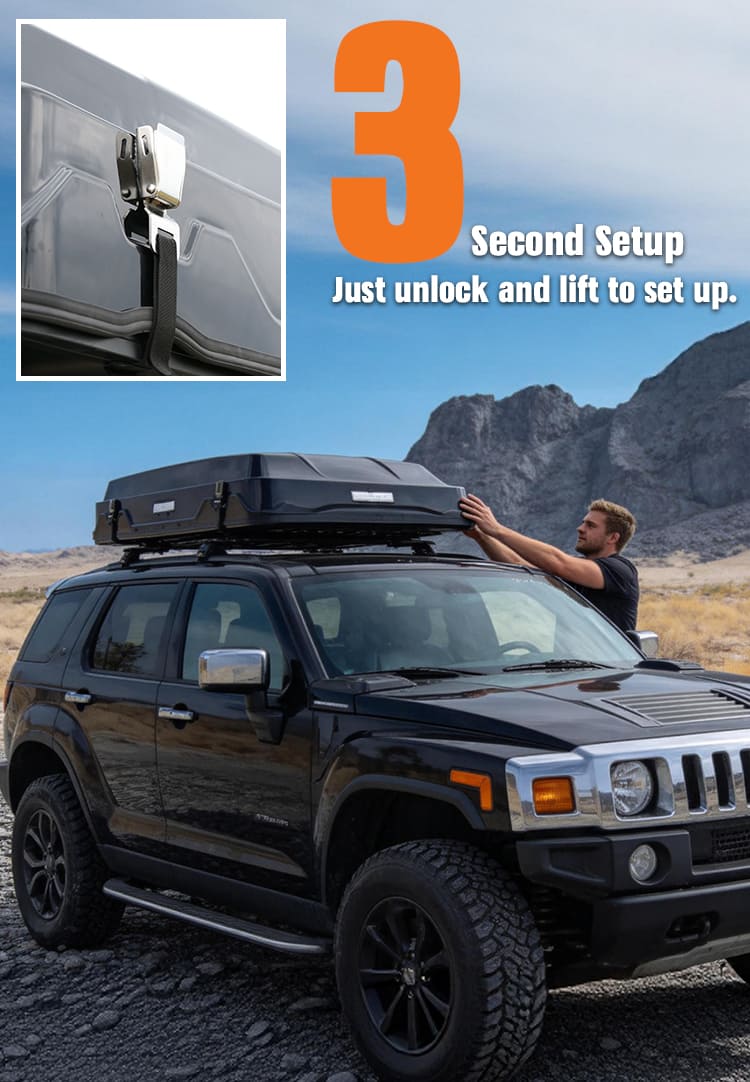

3-Step Quick Setup

Designed as a quick setup rooftop tent, deployment requires only three basic actions:

1. Unlock the hard shell.

2. Unfold/open the tent body.

3. Extend and position the telescoping ladder.

ABS Hard Shell Construction

This ABS hard shell rooftop tent utilizes a black ABS exterior casing paired with an aluminum alloy internal frame. The rigid shell encloses the folded tent during transport, creates the hard-shell exterior, and protects the packed tent body from direct weather exposure during travel. For a detailed material breakdown, review our ABS vs aluminum rooftop tent guide.

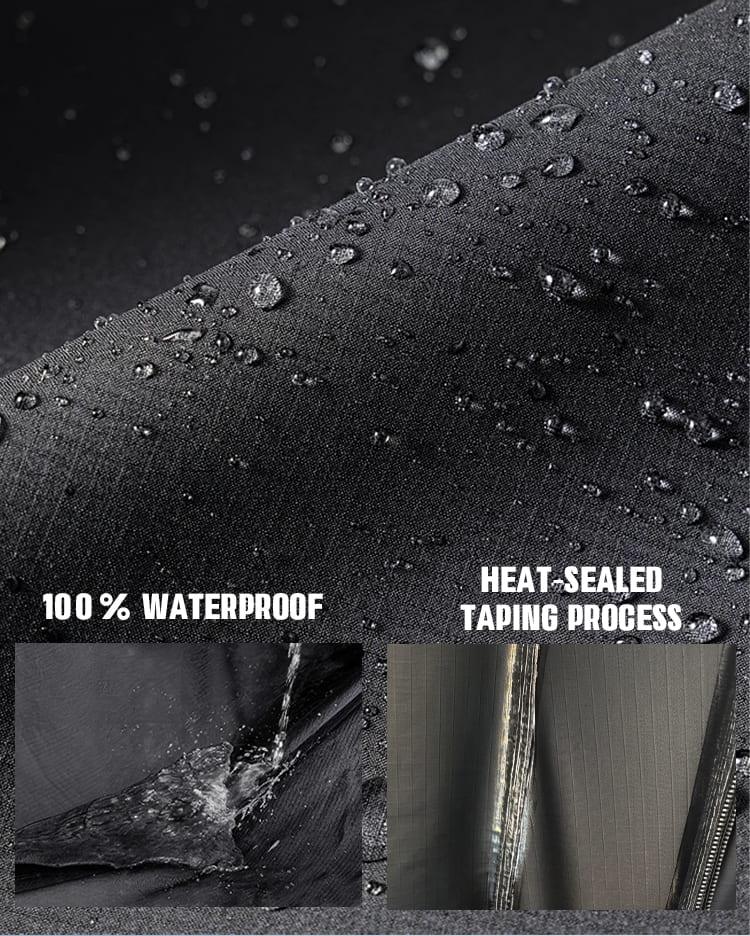

420D Oxford Fabric with PU3000 mm Waterproofing

The tent body uses 420D Oxford fabric with a PU coating and a manufacturer-specified 3000 mm waterproof rating. The material is also specified as wind-resistant and UV-resistant, providing reliable outdoor shelter across variable conditions.

5 cm 35D High-Density Foam Mattress

The sleeping platform includes a 5 cm (approximately 2 in) thick, 35D high-density foam mattress. For straightforward maintenance, it comes standard with a removable and washable double-layer mattress cover.

Ventilation, Mesh & Interior Features

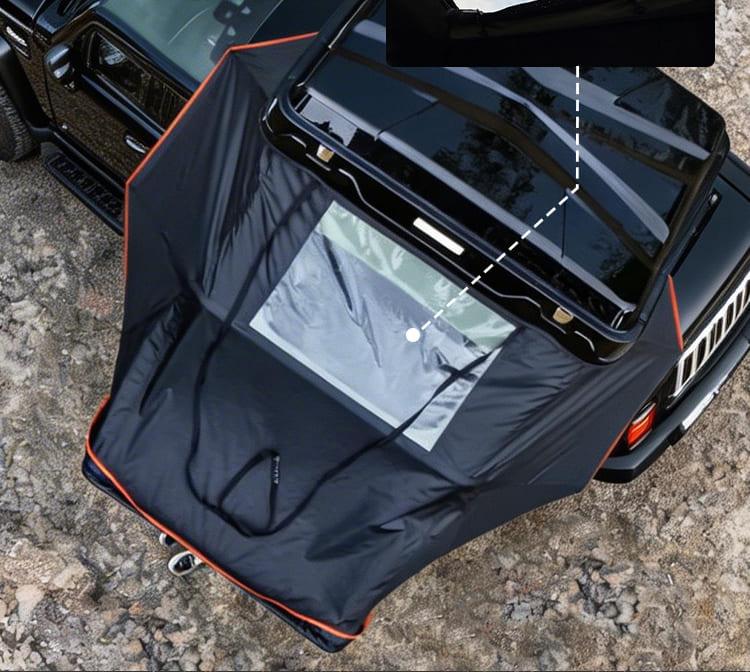

To support airflow and moisture management, the tent features integrated ventilation ports. The windows and entryways are equipped with 200 g colorfast mesh, allowing for cross-breeze while keeping insects out.

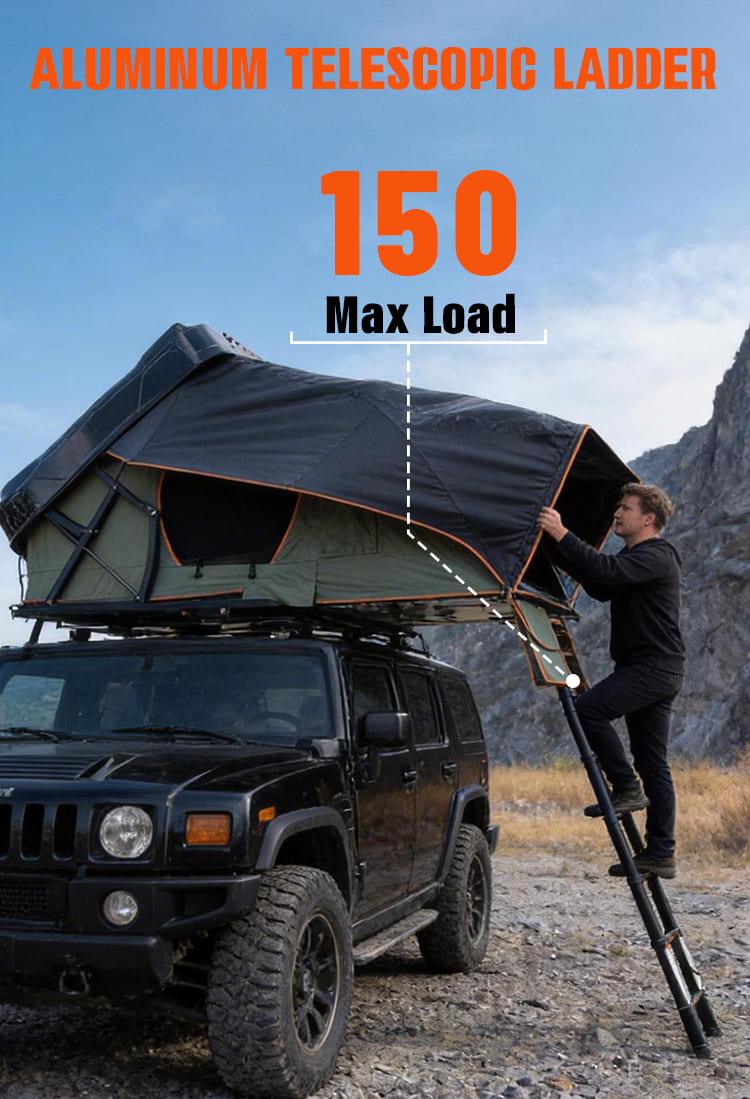

Included Aluminum Telescoping Ladder

A 2.3 m (approximately 7.5 ft) aluminum telescoping ladder is included for tent access. The telescoping design allows the ladder length to be adjusted during setup.

Vehicle & Roof Rack Compatibility

Before ordering this rooftop tent, buyers must verify installation compatibility.

• Tent net weight: 76.5 kg / 168.7 lb

• Buyers must confirm the vehicle manufacturer’s dynamic and static roof-load limits as well as the rated capacity of the roof rack or crossbars.

• Installation compatibility should be checked before ordering.

Note: The 500 kg figure refers to the manufacturer-specified tent load rating. It is not the vehicle’s dynamic or static roof-load rating.

Standard Features

Only product-integrated features:

• Double-layer mattress cover

• Three-color LED interior strip

• Ventilation port

• Heating/cooling air duct port

Optional Upgrades

For customized builds, the following optional upgrades are available:

• Awning support T-bar

• Anti-condensation mat

• Insulated inner liner

• 3 mm felt roof lining

• Upgraded 280–320 g heavier fabric options

• Upgraded breathable fabric options

Fabric Colors & OEM Customization

Standard verified fabric colors include gray, army green, khaki, and black. Custom fabric colors are available upon request. Everlead Outdoor operates as an ISO 9001:2015-certified facility, offering extensive OEM/ODM customization capabilities for private-label brands and wholesale distributors.

Complete Technical Specifications

What’s Included

Physical package contents:

• Fold-out rooftop tent

• 2.3 m aluminum telescoping ladder

• Installation kit

• Window support rods

FAQ

How many people is this rooftop tent best suited for?

The recommended capacity is 2 adults + 1 child.

Is this rooftop tent comfortable for three adults?

Three full-size adults may find the space restrictive. Buyers should evaluate the 252 × 160 cm deployed layout to determine if it meets their specific comfort requirements.

Is this a fold-out hard shell rooftop tent?

Yes. The tent has a 129 cm closed length for travel and expands to a 252 cm deployed length when opened.

How does the X-Frame rooftop tent mechanism work?

The X-Frame uses a scissor-style cross-bracing structure to assist with tent deployment and provide additional interior headroom.

How many steps does setup take?

Setup requires three basic steps: unlock the hard shell, unfold/open the tent, and extend and position the telescoping ladder.

What is the hard shell made from?

The hard shell is made from black ABS.

How waterproof is the tent?

The tent is constructed from 420D Oxford fabric with a PU coating and carries a manufacturer-specified 3000 mm waterproof rating.

What mattress is included?

A 5 cm 35D high-density foam mattress with a removable, washable cover is included.

Is the ladder included?

Yes, a 2.3 m aluminum telescoping ladder is included.

How heavy is the tent?

The tent has a net weight of 76.5 kg.

What does the 500 kg load capacity mean?

This is the manufacturer-specified tent load rating. It does not represent your vehicle’s dynamic or static roof-load rating.

How do I know whether it fits my vehicle?

Vehicle and roof-rack load capacity, crossbar limits, and mounting hardware compatibility must be independently confirmed before ordering.

What colors are available?

Standard colors include gray, army green, khaki, and black. Customizable colors are also available.

What optional upgrades are available?

Available upgrades include an awning support T-bar, an anti-condensation mat, an insulated inner liner, 3 mm felt roof lining, and 280–320 g heavier fabric options.

Need more room for two adults and two children? Compare our 4-person ABS fold-out rooftop tent.

Request a Quote

Sourcing a 3-person hard shell rooftop tent for your product line? Send Everlead your Tech Pack, target specifications, or customization requirements to request an OEM quotation to discuss OEM/ODM options and quotation details.
