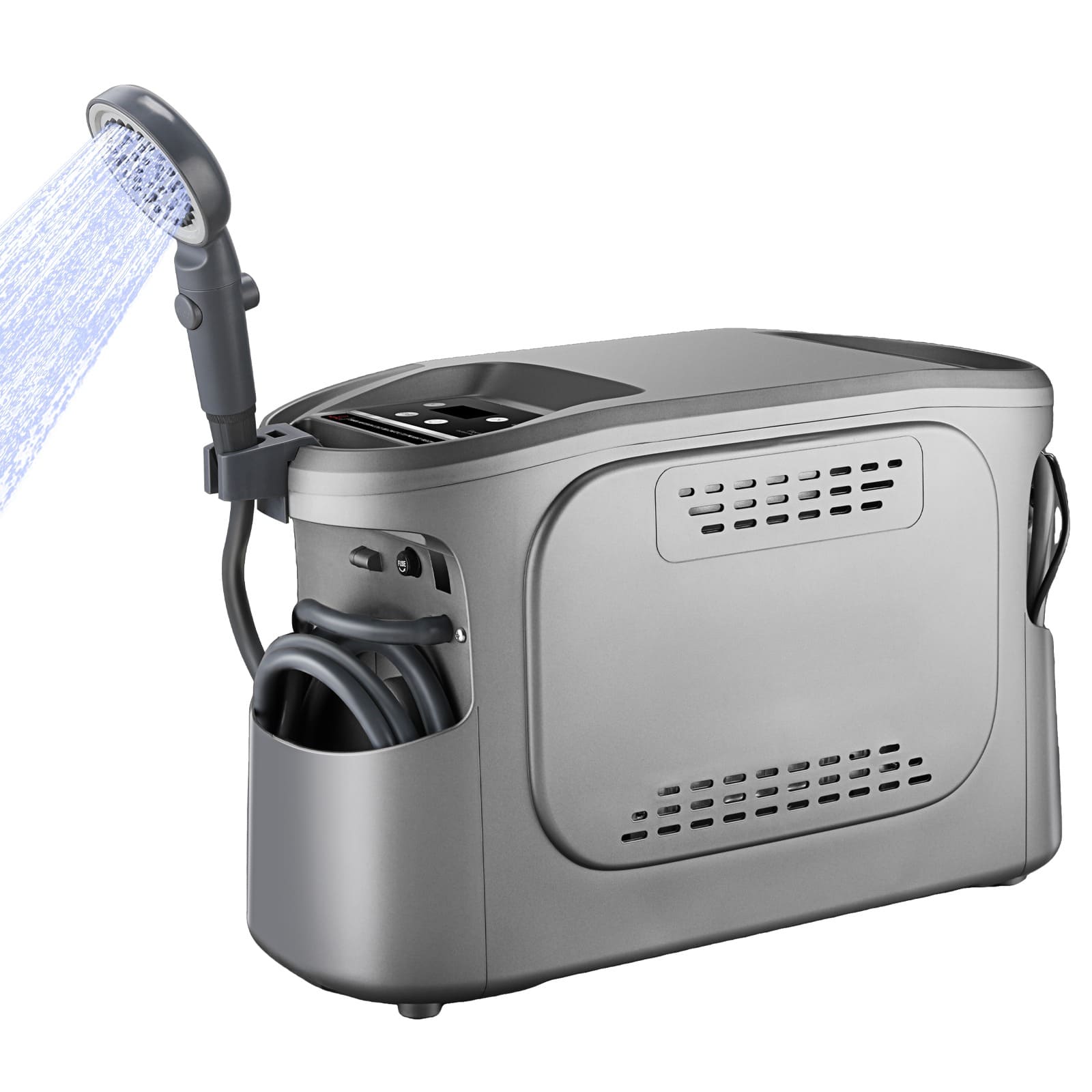

Helix Smart Thermostatic Portable Water Heater: Zero-Installation Off-Grid Series

Description

Key Features

• Intelligent Thermostatic Temperature Control

  • What it is: A digital microprocessor that dynamically adjusts the gas burner output to match the user’s exact temperature setting.

  • Why it matters: Traditional camp heaters require constant manual knob adjustments as incoming water pressure or ambient temperatures change. This system locks in the heat automatically.

  • Customer benefit: Delivers a safe, consistent, and luxurious hotel-quality shower experience outdoors, fully protecting users (especially children) from sudden scalding or freezing water.

• Revolutionary Zero-Installation Architecture

  • What it is: A completely integrated, self-priming water heater and pump assembly requiring no external plumbing.

  • Why it matters: Users no longer need to assemble individual water intake pipes, external pumps, or loose power leads before every use.

  • Customer benefit: Delivers genuine plug-and-play functionality straight out of the box, slashing camp setup times to seconds.

• Patented Smart Start-Stop Shower Logic

  • What it is: An advanced electronic pressure-sensing system that monitors water flow directly from the shower head.

  • Why it matters: When a user shuts off the shower valve to lather up, the system automatically cuts the burner; opening the valve within 20 minutes safely restarts the heat loop exactly where it left off.

  • Customer benefit: Conserves substantial amounts of water and fuel while providing a seamless, elegant washing experience.

• High-Output 6kW / 20,472 BTU Thermal Core

  • What it is: A high-efficiency gas burner array matching a maximum hot water flow rate of 3 Liters per minute (3L/min).

  • Why it matters: Easily warms 25°C ambient water up to a relaxing 50°C under standard operation, with a strict electronic safety ceiling of 55°C.

  • Customer benefit: Provides dependable, high-volume hot water for showering, dishwashing, and field sanitation, even in freezing alpine conditions.

• Autonomous 180-Minute Internal Lithium Array

  • What it is: A built-in 11.1V 5200mAh (56.16Wh) lithium battery pack utilizing industrial-grade INR18650-26E cells.

  • Why it matters: Powers the internal 25W water pump and digital thermostat independently for up to 3 hours of continuous operation at maximum heat load.

  • Customer benefit: Completely off-grid operation that can comfortably support consecutive hot showers for large family groups without requiring a running vehicle engine.

• Triple-Source Intelligent Pass-Through Charging

  • What it is: A versatile charging system supporting high-speed 30W Type-C input, a standard 12V car cigarette lighter plug, and optional 24V commercial vehicle modules.

  • Why it matters: Advanced pass-through engineering allows the internal pump to remain fully operational while the unit is charging.

  • Customer benefit: Keeps the unit ready to deploy whether plugged into a portable power bank, a solar generator, or an overland truck cabin.

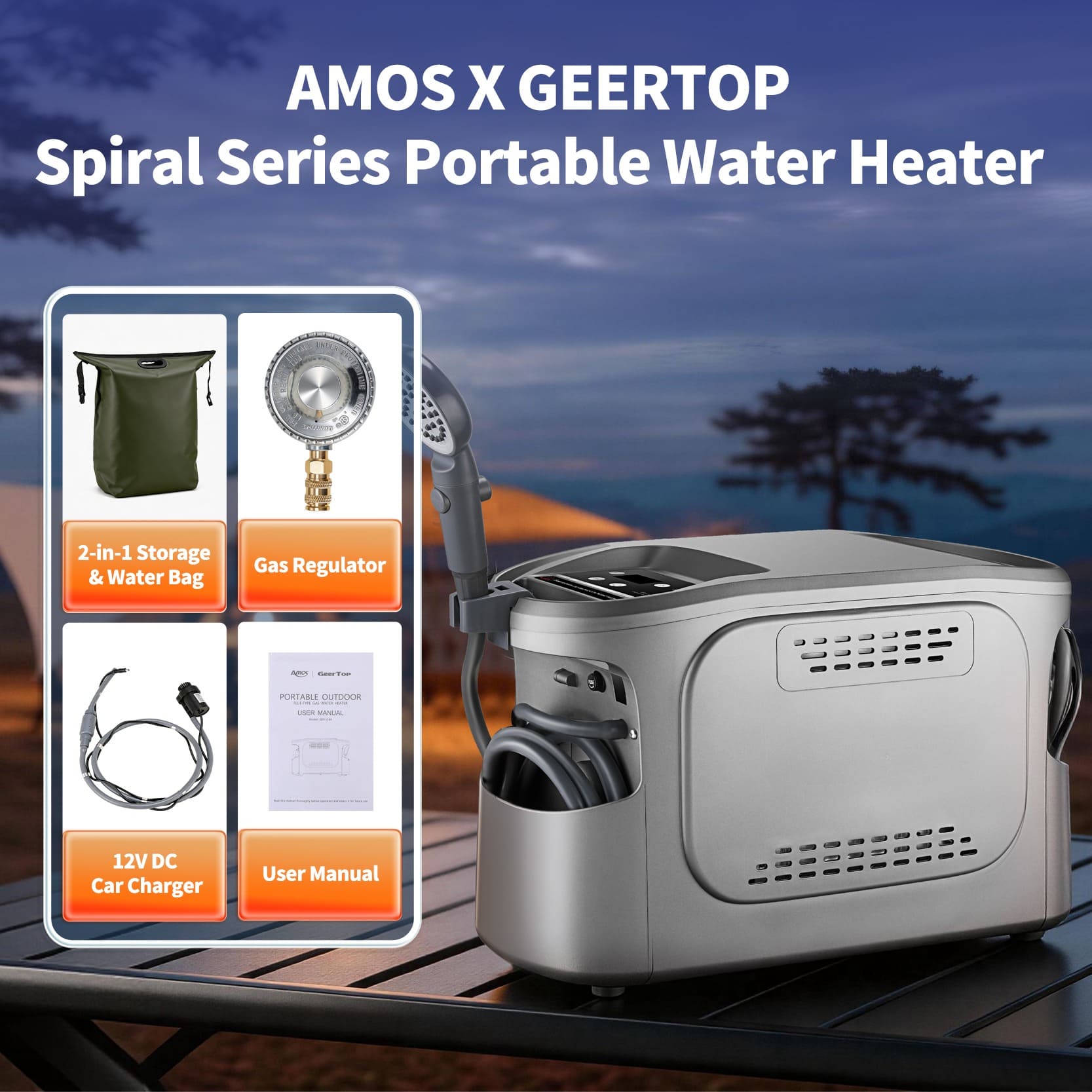

• Dual-Purpose Heavy-Duty Reservoir Bag

  • What it is: A custom-tailored, watertight carry bag engineered to operate as both protective transit armor and an active water reservoir.

  • Why it matters: Eliminates the need to pack separate bulky plastic buckets to draw water from.

  • Customer benefit: Streamlines inventory footprint, allowing users to pack light while ensuring a clean water vessel is always on hand.

Technical Specifications

Item	Commercial Sourcing Specification
Product Model	Helix Smart Thermostatic Portable Water Heater
Temperature Control	Digital Microprocessor (Constant Temp Output)
Chassis Dimensions	490 mm × 213 mm × 315 mm
Weight Profiles	Net Weight: 6.8 kg (15 lbs) / Gross Weight: 8.3 kg
Rated Thermal Load	6 kW / 20,472 BTU Core
Maximum Fuel Consumption	360 g/h
Max Flow Rate & Delivery	3 L/min Shower Output
Temperature Regulation	7–25 K Operational Rise (55°C Max Safety Limit)
Battery Configuration	11.1V 5200mAh (56.16Wh) Lithium-ion / 6 Cells
Charging Diagnostics	30W Max Type-C (3.5 Hrs) / 14V Car DC (3.5 Hrs)
Water Pressure Threshold	0.01 – 0.4 MPa Working Range
Pump Performance	25W Max Power / Lifespan exceeding 20,000 Hrs
Regulatory Compliance	Included AGA-Certified Quick-Release Regulator

Application Scenarios

Luxury Glamping & Mobile Eco-Resorts

For high-end glamping operators, inconsistent water temperatures lead to immediate customer complaints. The thermostatic core in this unit ensures that guests experience the same precise, constant hot water they would in a luxury hotel, even if the ambient groundwater temperature fluctuates. Bypassing expensive commercial plumbing permits, resorts use this compact unit to rapidly and affordably upscale their private outdoor bathing facilities.

Premium Overlanding Expeditions

Off-road adventurers require efficient, space-saving gear that works flawlessly after days of heavy trail vibration. The unit packs tightly inside vehicle cargo drawers, while its 1-second quick-connect gas line compatibility ensures overlanders can set up a pressurized, digitally controlled hot shower station anywhere their 4x4s can travel.

Industrial Field Operations & Emergency Fleets

Civil defense networks, remote exploration crews, and emergency first responders rely on this self-contained platform to set up mobile decontamination lines and field worker sanitation basecamps. Because the internal 25W water pump functions perfectly on low-pressure inputs (down to 0.01 MPa), crews can pull clean water directly from gravity bags or surface bladders safely and reliably.

Why Choose This Product

• Premium Retail USP: The upgrade to digital thermostatic control justifies a significantly higher retail price point compared to standard manual-knob water heaters.

• Quadruple Safety Protection Array: Built-in anti-tilt sensors cut gas flow if tipped; a 70°C thermal cutout prevents system overheating; an intelligent inline fuse protects electronics from accidental 24V truck-charging spikes; and automatic flameout detection shuts off gas immediately if wind disrupts the burner.

• Global Usability: Users can seamlessly toggle the digital control panel display between Celsius and Fahrenheit with a simple long press, simplifying international retail distribution.

• Cold Water Bypass Mode: A long press of the START button instantly switches the unit to cold-water mode, utilizing the pump without firing the burner—perfect for rapid gear washing or food prep.

• Palletized Logistics Design: Standardized master cartons (545 × 270 × 358 mm) maximize cargo stacking optimization, drastically lowering maritime shipping fees per unit for high-volume B2B importers.

OEM & ODM Customization Solutions

As your dedicated commercial manufacturing partner, Everlead Outdoor adapts this intelligent hot-water platform for your specific target market:

• Brand Aesthetics & UI Customization: High-precision chassis laser etching, custom digital display boot-up screens, and private-labeled control interfaces tailored to your corporate branding.

• Chassis Colorways: Durable powder-coated finishes matched to exact Pantone colors, including matte tactical black, desert sand, or slate grey.

• Regional Compliance Adapters: Custom-configured regulator layouts optimized for specific global gas connections, including regional LPG configurations, butane adapters, or screw-top high-altitude cartridges.

• Private-Label Retail Support: Custom-designed retail packaging boxes, user instructional graphics, and bespoke 2-in-1 carry bags.

Frequently Asked Questions

How does the thermostatic version differ from the standard knob version?

While both units share the same 6kW heat core and 5200mAh battery, the thermostatic version replaces manual gas/water ratio knobs with a digital microprocessor. The user simply sets their desired temperature on the screen, and the system automatically adjusts the internal fuel valves to maintain that exact temperature, regardless of changes in the incoming water pressure or ambient cold.

What fuel canisters are compatible with this portable system out of the box?

The unit comes standard with an AGA-certified quick-release gas pressure regulator calibrated directly for North American standard propane cylinders. For international distributors managing regions where butane, high-altitude cartridges, or traditional LPG tanks dominate, we supply dedicated adapter fittings to ensure safe, localized retail deployment.

How do I calculate the fuel consumption runtime?

Gas consumption can be calculated using this standard formula: Gas Cylinder Weight ÷ Maximum Fuel Consumption (360g/h) = System Runtime. For example, a standard 450g camping gas canister provides approximately 1.25 hours (75 minutes) of continuous operation at maximum thermal load. Because typical camp showers last under 5 minutes, a single small canister supports over 15 individual sessions.

What happens if a user accidentally plugs the 12V unit into a 24V commercial truck?

To prevent costly warranty claims, we engineered an intelligent charging protection circuit. If the unit is plugged into an unapproved 24V high-voltage source, the external inline fuse will intentionally blow to protect the expensive main control board. The user simply replaces the cheap fuse, rather than destroying the machine.

Designed and Manufactured by Everlead Outdoor

Everlead Outdoor is an ISO 9001-certified OEM/ODM manufacturer specializing in high-performance overlanding shelters, rugged vehicle extensions, and technical contract campsite infrastructure. Operating an advanced facility with over ten years of international supply chain experience, we specialize in transforming complex mechanical blueprints into market-ready retail products. Every single portable water heater batch undergoes a non-negotiable 100% automated quality control inspection on our production floor, including strict gas-pressure leak checks, thermal core validation, and electronic battery cell line matching. By partnering with leading outdoor brands across the United States, Australia, and Europe, Everlead Outdoor secures your B2B distribution channel with exceptional factory-direct pricing, clear seasonal lead times, and flexible, low-MOQ prototyping frameworks.
