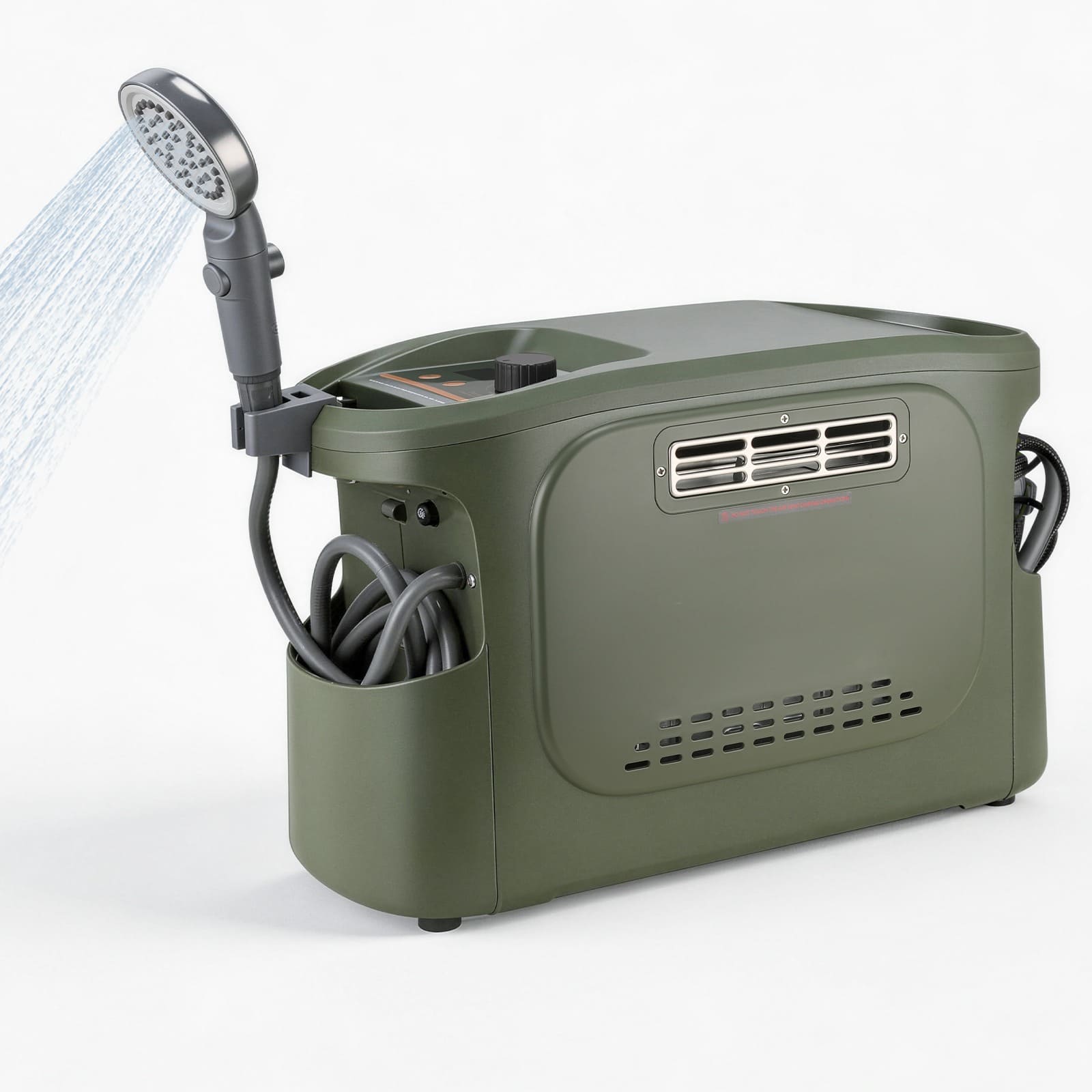

Helix Knob 6kW Portable Water Heater: Zero-Installation Off-Grid Series

Description

Key Features

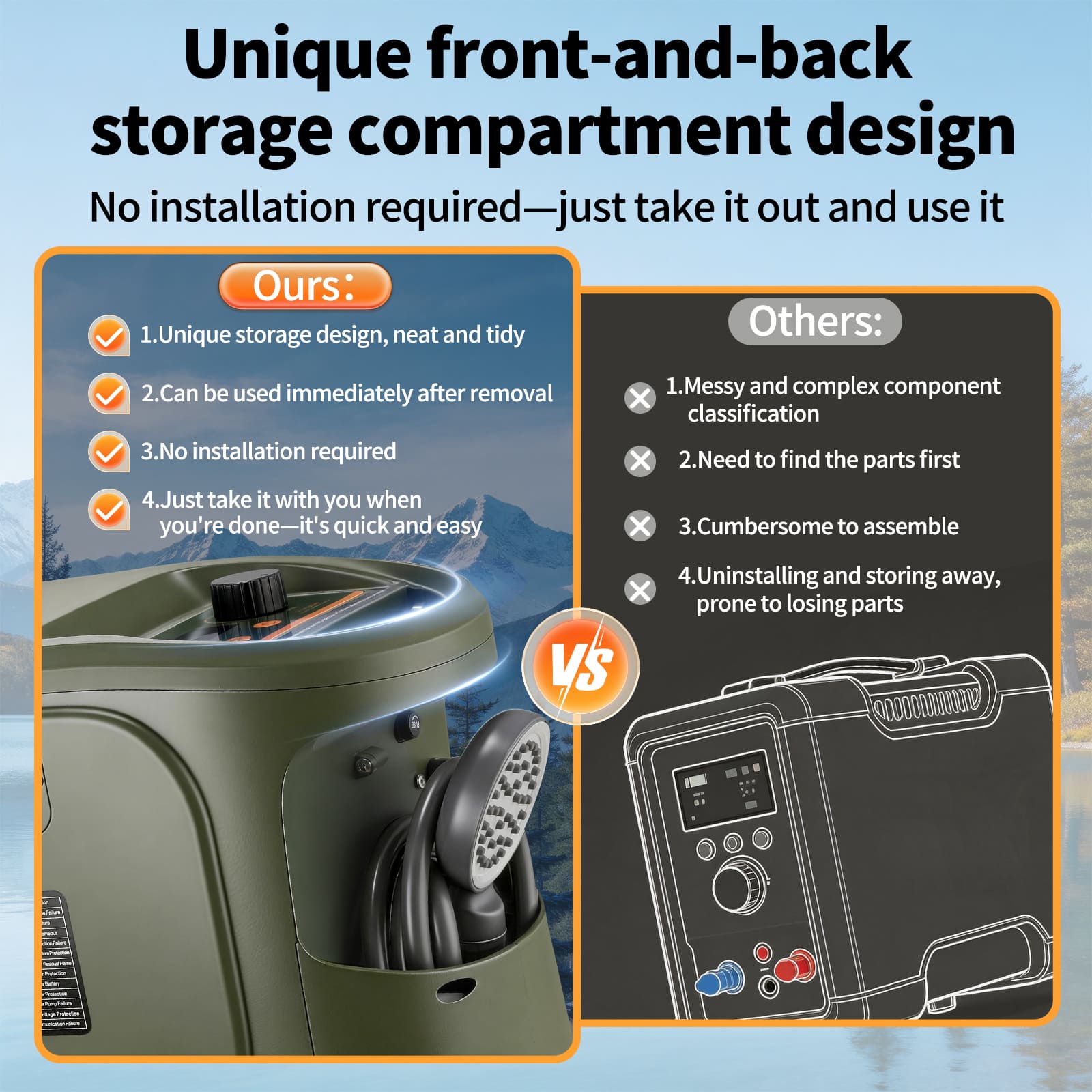

• Revolutionary Zero-Installation Architecture

  • What it is: A completely integrated, self-priming water heater and pump assembly requiring zero external plumbing or permanent wall mounting.

  • Why it matters: Standard portable water heaters force users to assemble individual water intake pipes, external pumps, and loose power leads before every use.

  • Customer benefit: Delivers genuine plug-and-play functionality straight out of the box, slashing camp setup times and removing technical deployment barriers for end-consumers.

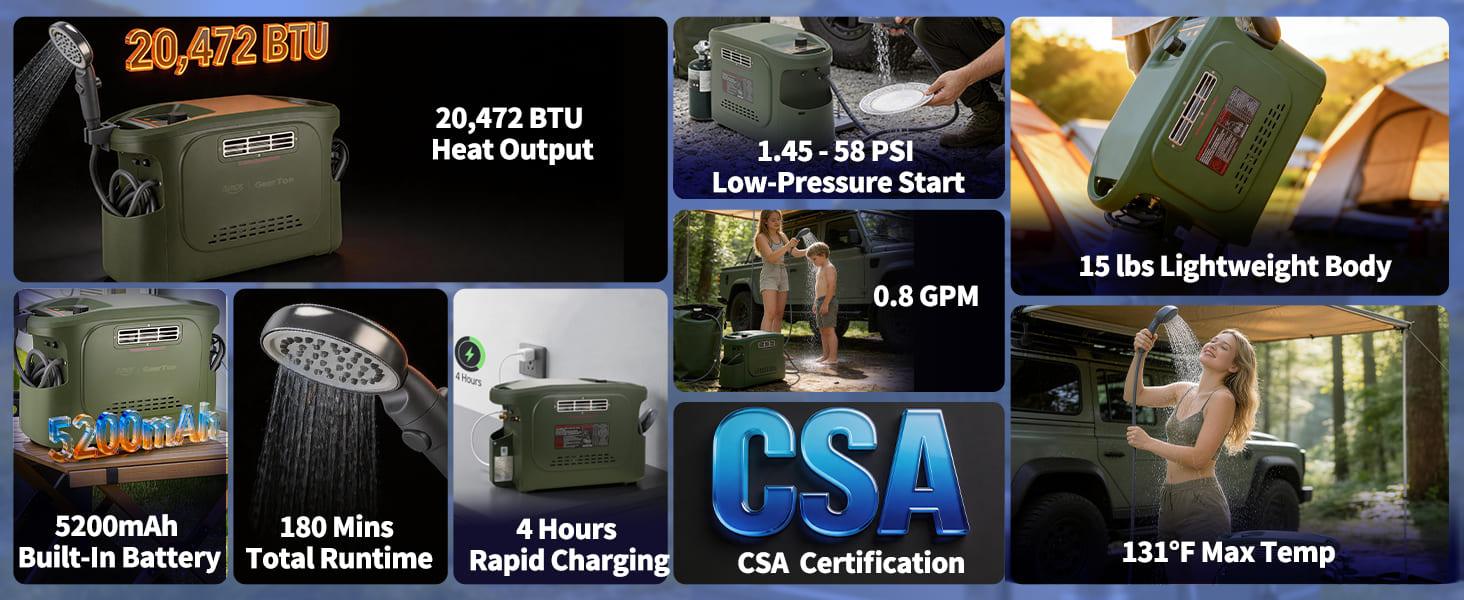

• High-Output 6kW / 20,472 BTU Thermal Core

  • What it is: A high-efficiency gas burner array matching a maximum hot water flow rate of 3 Liters per minute (3L/min).

  • Why it matters: The system yields an exceptional 7–25K temperature rise, easily warming 25°C water up to a relaxing 50°C under standard operation, with a maximum safety ceiling of 55°C.

  • Customer benefit: Provides dependable, stable water temperatures for comfortable showering, dishwashing, and field sanitation, even in freezing alpine conditions or late-autumn basecamps.

• Patented Smart Start-Stop Shower Logic

  • What it is: An advanced electronic pressure-sensing system that monitors water flow directly through the shower head.

  • Why it matters: When a user shuts off the shower valve to lather up, the system automatically cuts the burner; opening the valve within 20 minutes safely restarts the heat loop without needing to reboot the main control panel.

  • Customer benefit: Conserves substantial amounts of water and fuel while providing an elegant, seamless showering experience that mimics a residential home bath.

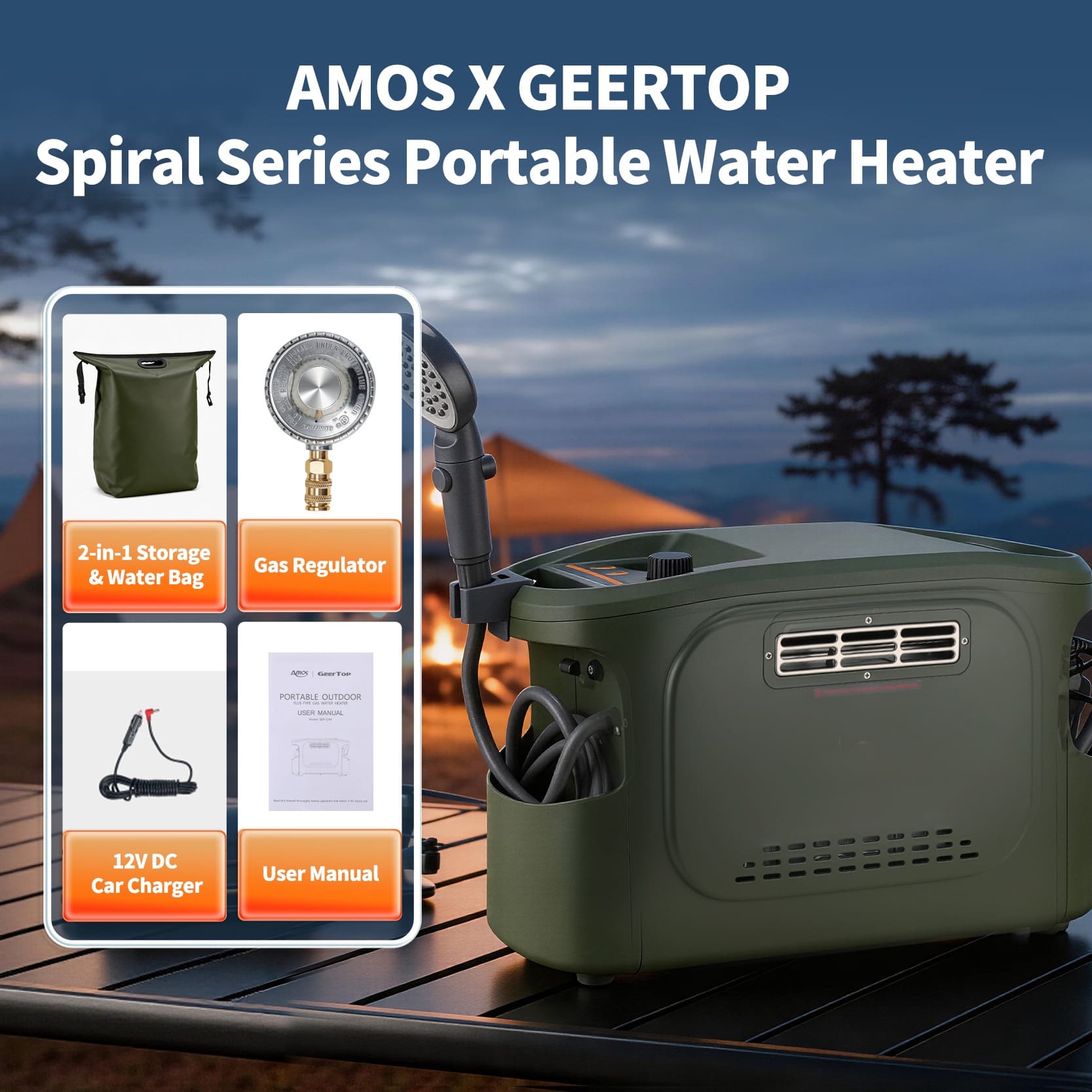

• Dual-Purpose Heavy-Duty Storage & Reservoir Bag

  • What it is: A custom-tailored, watertight carry bag engineered to operate as both a protective transit armor and an active 2-in-1 water reservoir.

  • Why it matters: Eliminates the need to pack separate bulky plastic buckets or search for hard-sided clean water containers at remote campsites.

  • Customer benefit: Streamlines inventory footprint for overlanders, allowing users to pack light while ensuring an immediate clean water source is always attached to the vehicle.

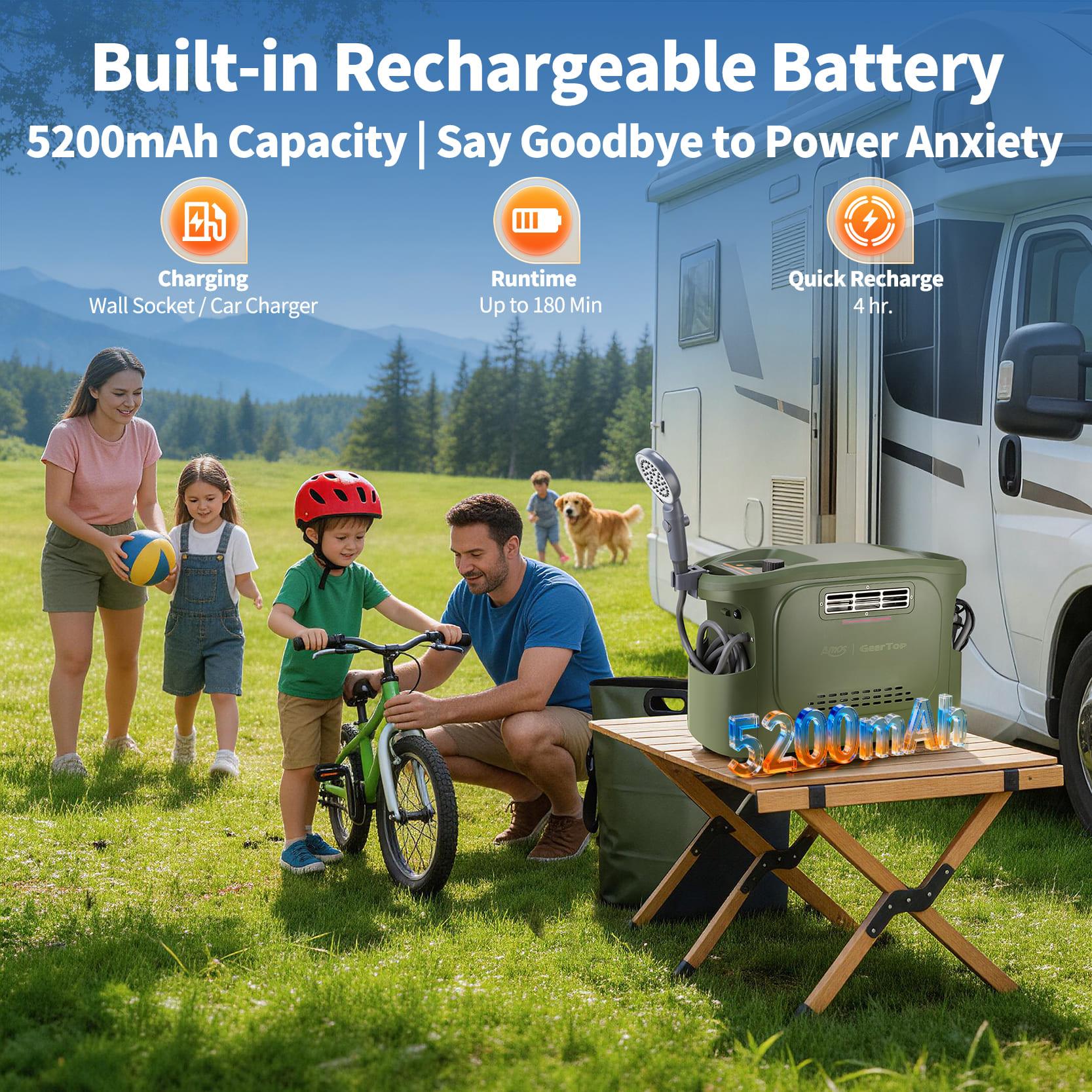

• Autonomous 180-Minute Internal Lithium Array

  • What it is: A built-in 11.1V 5200mAh (56.16Wh) lithium battery pack utilizing industrial-grade INR18650-26E cells.

  • Why it matters: Powers the internal 25W water pump independently for up to 3 hours of continuous operation at maximum heat load without tying into a running vehicle engine.

  • Customer benefit: Delivers completely off-grid operation that can comfortably support consecutive hot showers for large family groups or field crews without requiring generator connections.

• Triple-Source Intelligent Pass-Through Charging

  • What it is: A versatile charging system supporting high-speed 30W Type-C input, a standard 12V car cigarette lighter plug, and optional 24V commercial vehicle modules.

  • Why it matters: Features advanced pass-through engineering, allowing the internal pump and ignition systems to remain fully operational while charging via the included 3-meter 12V vehicle cable.

  • Customer benefit: Removes battery anxiety entirely from long expeditions, keeping the unit ready to deploy whether plugged into a portable power bank, a solar generator, or an overland truck cabin.

Technical Specifications

Item	Commercial Sourcing Specification
Product Model	Helix Knob 6kW Portable Water Heater Series

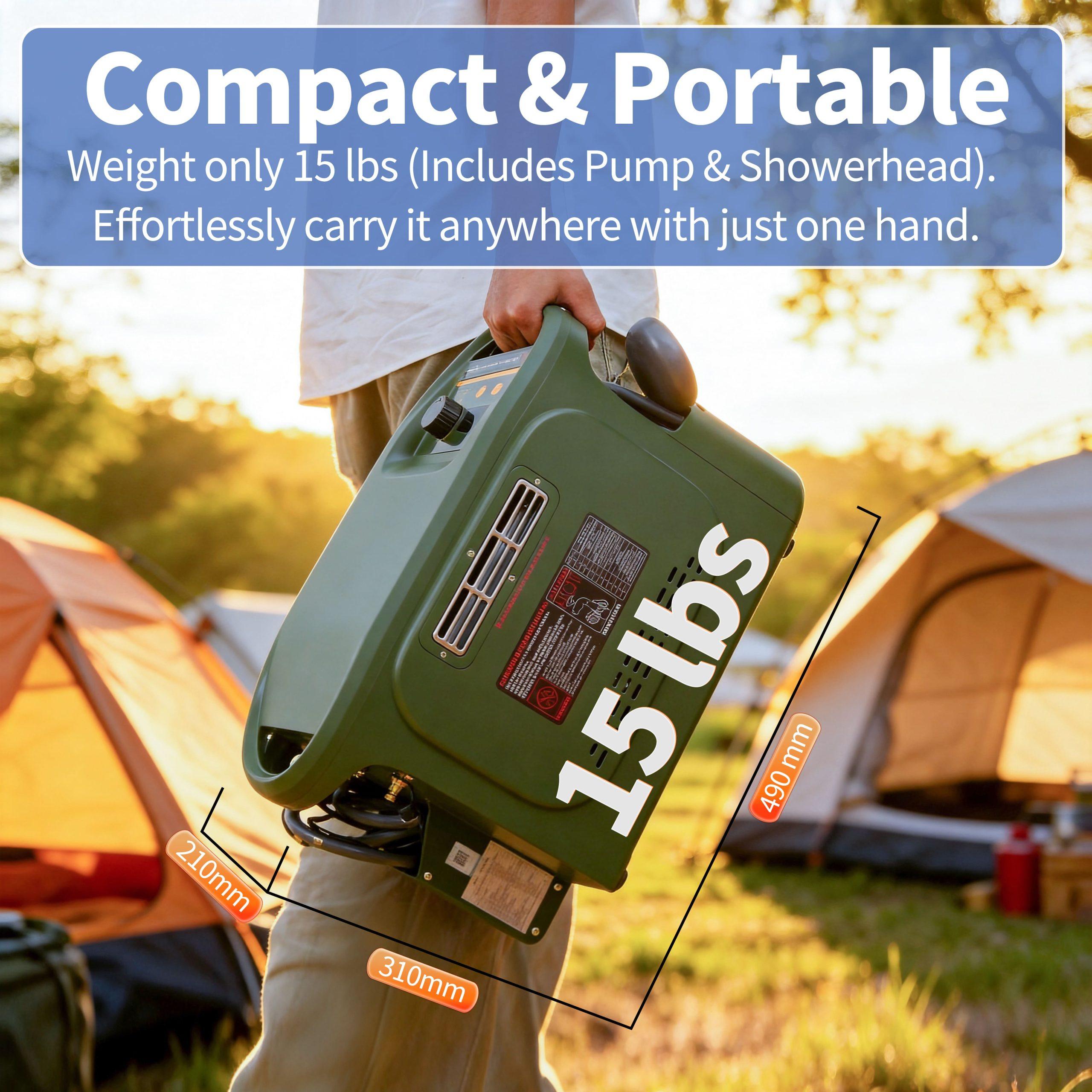

Chassis Dimensions	490 mm × 213 mm × 315 mm
Master Carton Dimensions	545 mm × 270 mm × 358 mm
Weight Profiles	Net Weight: 6.8 kg (15 lbs) / Gross Weight: 8.3 kg (18.3 lbs)
Rated Thermal Load	6 kW / 20,472 BTU Core
Maximum Fuel Consumption	360 g/h
Max Flow Rate & Delivery	3 L/min Shower Output
Temperature Regulation	7–25 K Operational Rise (55°C Max Safety Limit)
Battery Configuration	11.1V 5200mAh (56.16Wh) Lithium-ion / 6 Cells
Charging Diagnostics	30W Max Type-C (3.5 Hours) / 14V Car DC (3.5 Hours)
Water Pressure Threshold	0.01 – 0.4 MPa Working Range
Pump Performance	25W Max Power / Lifespan exceeding 20,000 Working Hours
Gas Fuel Compatibility	Liquid Propane / High-Altitude Gas / LPG (with adapters)
Regulatory Compliance	Included AGA-Certified Quick-Release Regulator Assembly

Application Scenarios

Remote Overlanding Expeditions

Off-road adventurers and vehicle campers rely on efficient, spacesaving gear to support long-term self-sufficiency on the trail. The Helix Knob Water Heater packs tightly inside vehicle beds or cargo storage slides alongside hard shell roof top tents. Its rugged build handles heavy vibrational shock on rough trails, while its 1-second quick-connect gas line compatibility ensures overlanders can set up a fully pressurized hot shower station anywhere their vehicles can travel.

Premium Glamping & Luxury Eco-Resorts

Property groups and experiential resort managers deploy these high-end, zero-installation portable water heaters to add private, hot showering stations to safari canvas setups, geodesic domes, and boutique cabins. Bypassing expensive commercial plumbing permits and trenching infrastructure costs, operators use this compact unit to rapidly upscale their campsite facilities, increasing booking value while offering premium residential comfort to luxury clients.

Industrial Field Operations & Emergency Fleets

Civil defense networks, remote exploration crews, and emergency first responders rely on this self-contained platform to quickly set up mobile decontamination lines, field kitchens, and worker sanitation basecamps during grid failures or infrastructure shutdowns. Because the internal 25W water pump functions perfectly on low-pressure inputs (down to 0.01 MPa), crews can pull clean water directly from gravity bags, reservoir tanks, or surface bladders to maintain high hygiene standards in the field.

Why Choose This Product

• Zero Installation Overhead: Completely self-contained housing drops labor setup costs down to zero for rental fleets and camp hosts.

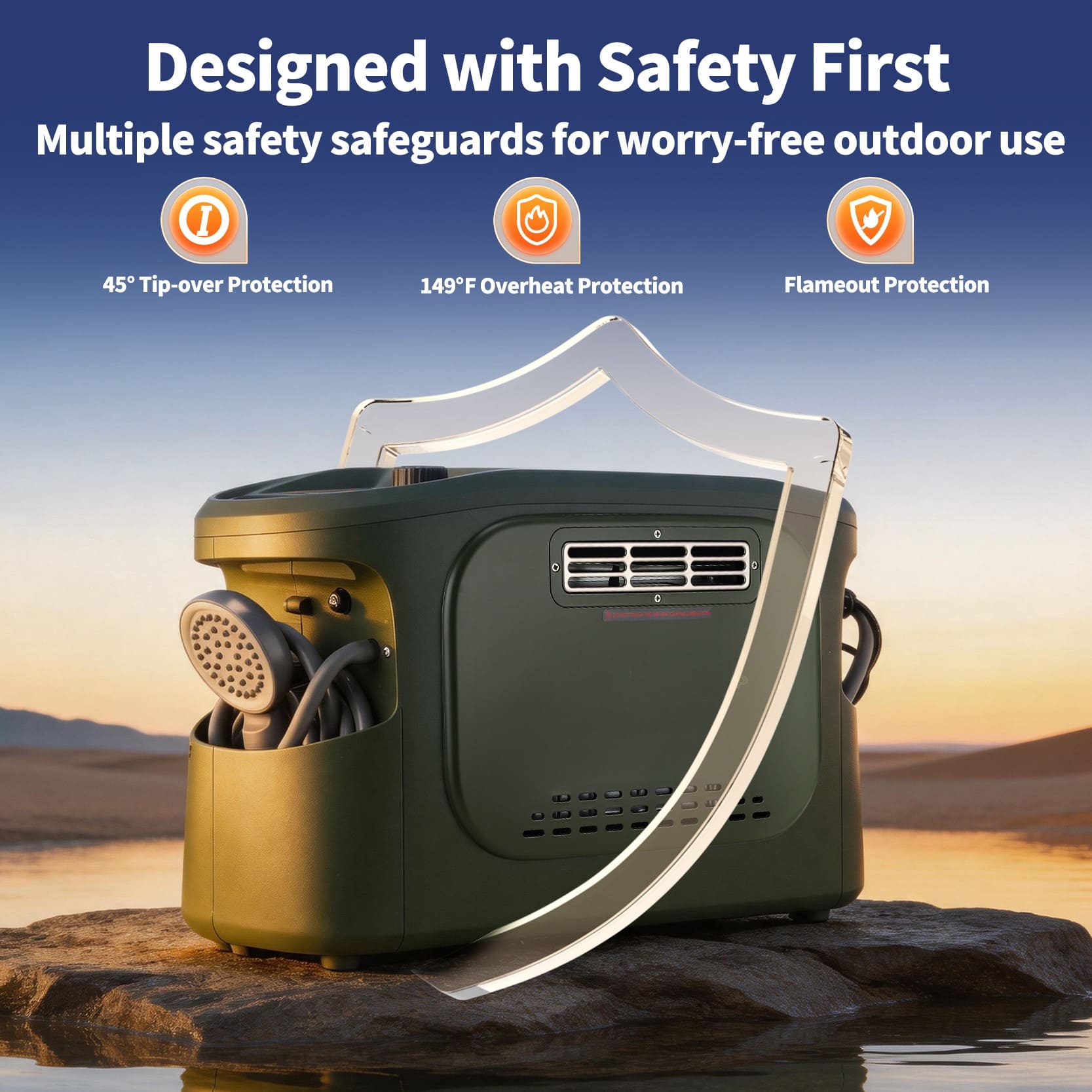

• Quadruple Safety Protection Array: Built-in anti-tilt sensors automatically stop the gas flow if the unit tips on uneven ground; a 70°C thermal cutout cuts fuel instantly to prevent scalding; an intelligent inline fuse system protects internal electronics from accidental 24V truck-charging spikes; and automatic flameout detection shuts off gas immediately if wind disrupts the burner.

• Palletized Logistics Design: Standardized master cartons ($545 \times 270 \times 358\text{ mm}$) maximize cargo stacking optimization, drastically lowering maritime shipping fees per unit for high-volume B2B importers.

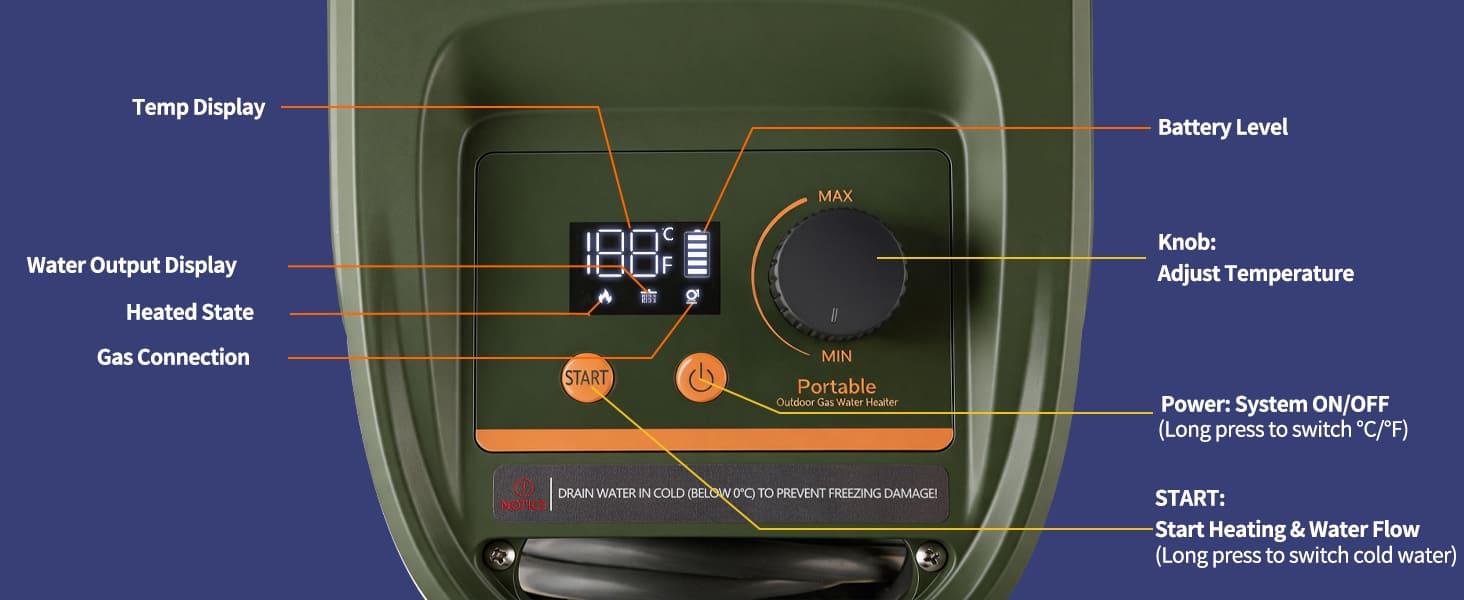

• Universal Temperature Readings: Users can seamlessly toggle the digital control panel display between Celsius and Fahrenheit with a simple long press, simplifying international retail distribution.

• Dual-Mode Operational Flexibility: Features an integrated cold-water bypass mode, letting users instantly switch off the heating core to pump ambient water for rapid gear washing or food prep.

OEM & ODM Customization Solutions

As your dedicated commercial manufacturing partner, Everlead Outdoor leverages our established OEM & ODM engineering capabilities to adapt this portable hot-water platform for your specific target market:

• Brand Aesthetics & Logo Placement: High-precision chassis laser etching, custom-molded dial designs, and private-labeled control interfaces tailored to your corporate branding.

• Chassis Color Customization: Durable powder-coated finishes matched to exact Pantone colorways, including matte tactical black, desert sand, or slate grey.

• Logistics & Regional Compliance Adapters: Custom-configured regulator layouts optimized for specific global gas connections, including regional LPG configurations, butane adapters, or specific high-altitude canisters.

• Private-Label Retail Support: Custom-designed retail packaging boxes, user instructional graphics, and custom carry cases optimized for automated commercial distribution networks.

Frequently Asked Questions

What fuel canisters are compatible with this portable system out of the box?

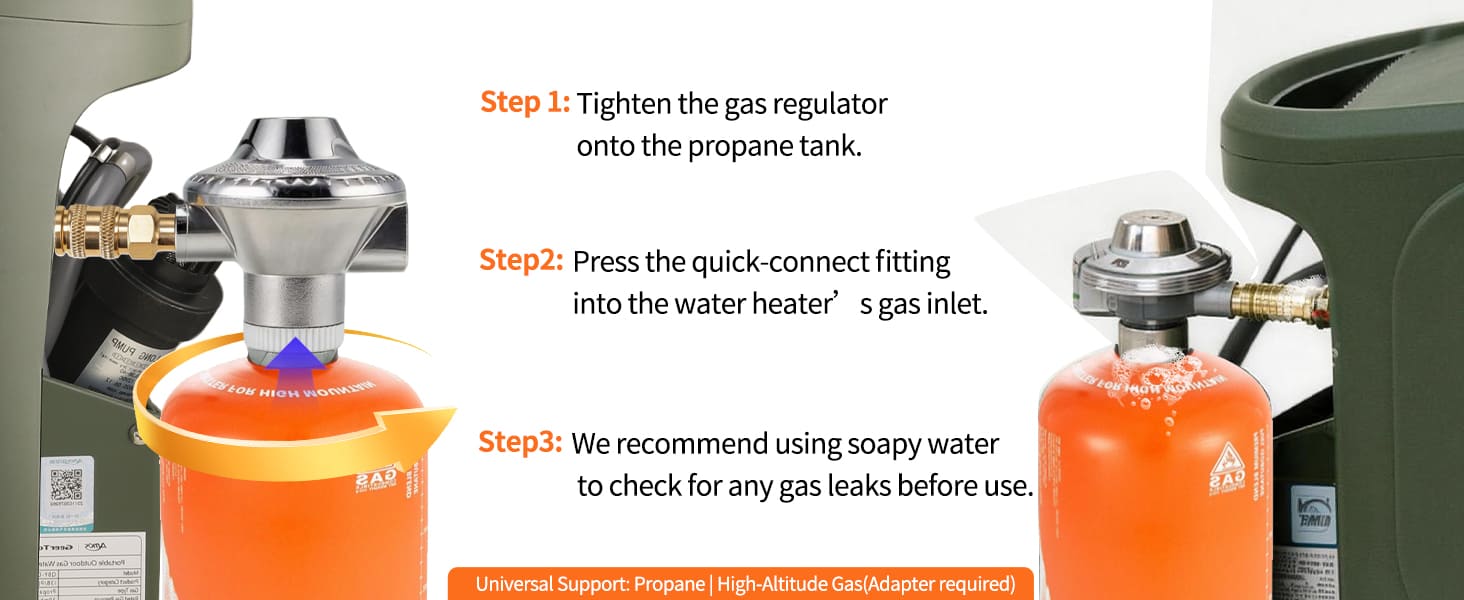

The unit comes standard with an AGA-certified quick-release gas pressure regulator calibrated directly for North American standard propane cylinders. For international distributors managing regions where butane, screw-top high-altitude cartridges, or traditional LPG tanks dominate, our engineering line supplies dedicated adapter fittings and step-by-step training videos to ensure safe, localized retail deployment.

How do I calculate the fuel consumption runtime for end-consumers?

Gas consumption is highly predictable and can be calculated using this standard formula: Gas Cylinder Weight ÷ Maximum Fuel Consumption (360g/h) = System Runtime. For example, a standard 450g camping gas canister provides approximately 1.25 hours (75 minutes) of continuous hot water operation at maximum thermal load. Because typical camp showers last under 5 minutes, a single small canister can easily support over 15 individual sessions.

Can this water heater operate safely if the internal battery drops to 0%?

Yes. Thanks to our advanced inline pass-through circuitry, if the 5,200mAh lithium pack drains completely during field operation, users can simply plug the included 3-meter 12V car charger cable into their vehicle’s cigarette lighter or connect a 30W Type-C power bank. The system will charge its internal cells while continuing to run the water pump and burner controls without interruption.

How does the unit protect itself against extreme outdoor cold or accidental freezing?

To maintain long-term reliability for commercial equipment catalogs, the unit features an inline winter drain plug. For storage or transit in freezing sub-zero conditions, fleet operators simply loosen the valve to vent remaining internal water from the heat exchanger loop, preventing ice expansion from fracturing the internal copper water channels.

Designed and Manufactured by Everlead Outdoor

Everlead Outdoor is an ISO 9001-certified OEM/ODM manufacturer specializing in high-performance overlanding shelters, rugged vehicle extensions, and technical contract campsite gear. Operating an advanced facility with over ten years of international supply chain experience, we specialize in transforming complex mechanical blueprints into market-ready retail products. Every single portable water heater batch undergoes a non-negotiable 100% automated quality control inspection on our production floor, including strict gas-pressure leak checks, thermal core validation, and electronic battery cell line matching. By partnering with leading outdoor brands across the United States, Australia, and Europe, Everlead Outdoor secures your B2B distribution channel with exceptional factory-direct pricing, clear seasonal lead times, and flexible, low-MOQ prototyping frameworks.
