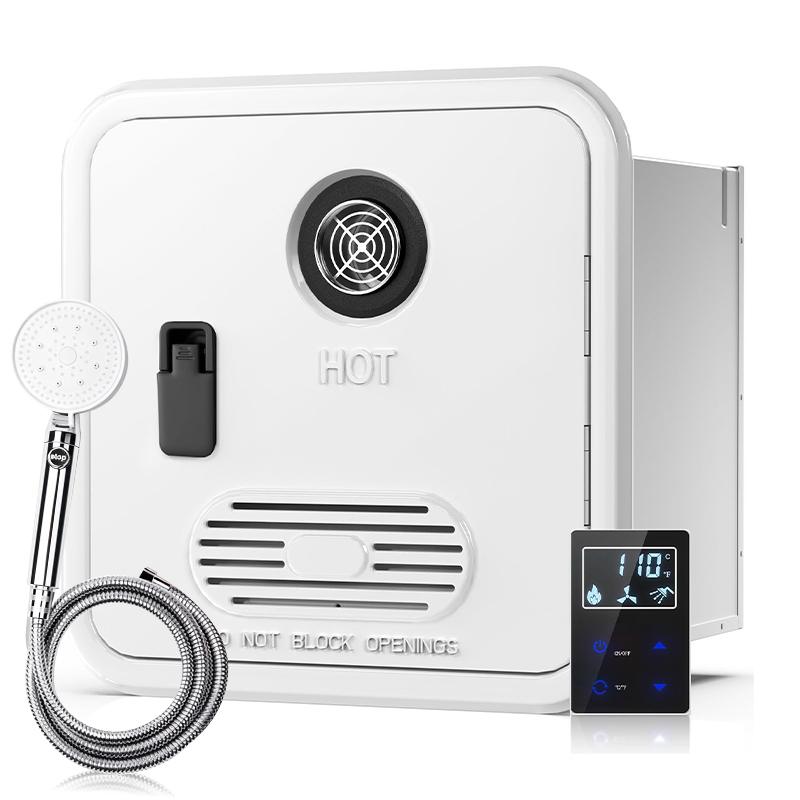

Front view of the GWH-4 RV tankless gas water heater with a clean white panel, featuring the unique front-facing shower outlet and digital control interface.
GWH-4 water heater installed on an RV exterior wall, displayed with icons highlighting its CSA certification, anti-freeze protection, and rapid heating capabilities.
Demonstration of the GWH-4's front water outlet, showing a user connecting a shower hose directly to the RV exterior for convenient outdoor washing.
Internal structure of the GWH-4 showing the TP2 pure copper heat exchanger, designed for 65,000 BTU high-efficiency heating and corrosion resistance.
Collage showing the GWH-4 intelligent remote control panel alongside various usage scenarios, including RV camping, outdoor pet washing, and kitchen use.
EVERLEAD > Products > Everlead > GWH-4 RV Tankless Gas Water Heater | 65,000 BTU On-Demand System (CSA Certified)

GWH-4 RV Tankless Gas Water Heater | 65,000 BTU On-Demand System (CSA Certified)

SKU: GWH-4 Categories: , , Brand:

Hybrid “In & Out” Design: The only RV heater featuring a Front-Facing Water Outlet, allowing users to attach a shower hose directly to the exterior unit for washing pets or gear outside.

Massive Power: Delivers 65,000 BTU of heating power with options for 6L, 8L, or 10L flow rates, ensuring endless hot water for RV showers and sinks.

CSA Certified Safety: Fully certified for North American markets, featuring segmented combustion and comprehensive active protection systems.

Smart Climate Control: Includes a wired Intelligent Remote Control panel for precise temperature setting (35°C-51°C / 95°F-124°F) inside the cabin.

Standard Retrofit Fit: Designed to fit standard RV water heater cut-outs (approx. 12.6″ x 12.6″), making it an easy upgrade for existing fleets.

Description

GWH-4 RV water heater installed on a vehicle, showing a woman washing a dog outside using the front-facing shower outlet.

Dual-Purpose: Cabin & Outdoor Shower

Standard RV heaters are hidden away. The GWH-4 adds utility where it counts.

  • Front-Facing Outlet: A specialized port on the exterior door allows instant connection of a shower hose.

  • Outdoor Utility: Perfect for “Van Life” scenarios—washing muddy dogs, cleaning sandy feet, or rinsing surfboards outside the vehicle without tracking dirt inside.

  • Internal Supply: Simultaneously supplies steady hot water to the RV’s internal kitchen and bathroom faucets.

Instant Heat, High Efficiency

Built for the demands of full-time road travel.

  • TP2 Pure Copper Exchanger: Utilizes high-purity copper for maximum thermal conductivity and corrosion resistance against varied water qualities.

  • Segmented Combustion: The smart burner automatically adjusts the flame stages based on incoming water temp and flow, saving propane while delivering a massive 65,000 BTU load.

  • Zero Wait Time: Tankless design means you never run out of hot water, no matter how long the shower.

Precise Temperature Management

Complete control from the comfort of the driver’s seat or living area.

  • Digital Remote: Comes with a wired wall-mount controller that displays real-time temperature, flame status, and fan operation.

  • Wide Range: Users can dial in their perfect temperature between 95°F and 124°F (35°C-51°C).

  • User-Friendly: Simple touch interface replaces vague analog knobs found on older RV heaters.

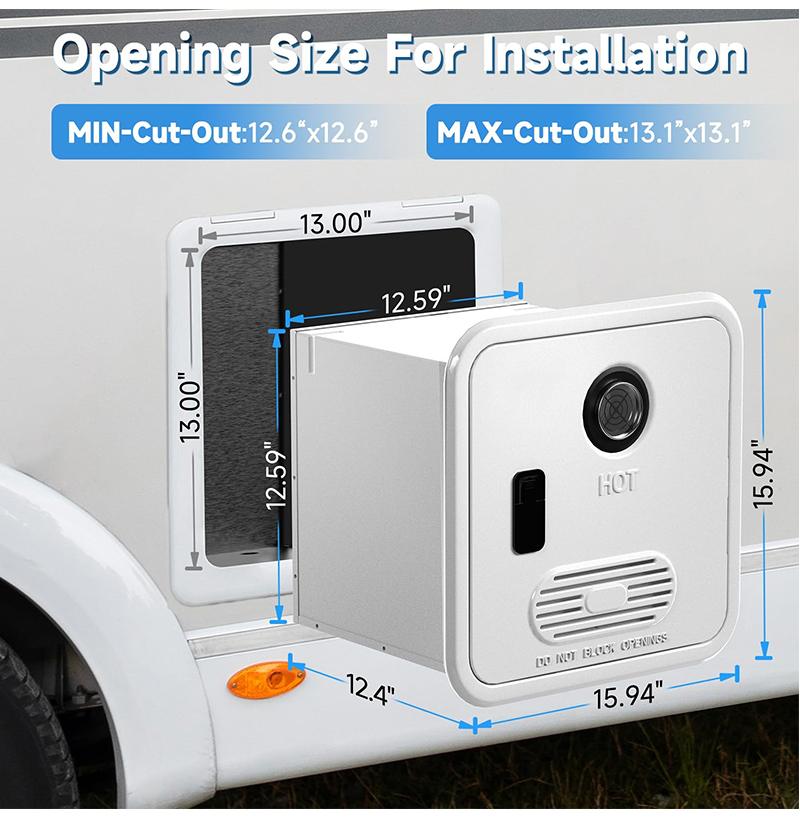

The Perfect Retrofit Solution

Engineered to replace outdated 6-gallon tank heaters.

  • Standard Cut-Out: Fits openings between 12.6″ x 12.6″ (Min) and 13.1″ x 13.1″ (Max), the industry standard for US travel trailers and motorhomes.

  • Easy Access: The door design provides quick access to internal components for maintenance without removing the entire unit.

Icon graphic illustrating the 9 safety features of the GWH-4, including Anti-Freeze, Anti-Scalding, and Dry Combustion protection.

Certified Safety for Peace of Mind

Safety is non-negotiable in mobile living spaces.

  • CSA Certified: Meets rigorous North American safety standards for gas appliances.

  • Anti-Freeze Protection: Active ceramic heating elements prevent the heat exchanger from cracking in cold weather.

  • Comprehensive Sensors: Includes Air Pressure Switch, Flameout Protection, Overheating (>85°C) Cut-off, and Water Overpressure Relief Valve.

📊 Factory Technical Specifications (Data Sheet)

FeatureSpecification
ModelGWH-4 RV Tankless Water Heater
Gas TypeUS Standard Propane
Rated Load65,000 BTU
Flow Rate Options6L / 8L / 10L (Customizable)
VoltageDC 12V (Vehicle System)
Temp Range35°C – 51°C (95°F – 124°F)
Heat ExchangerTP2 Pure Copper
Water Pressure10 – 60 PSI
Cut-Out Size~12.6″ x 12.6″ (320mm x 320mm)
Net Weight11.28 KG
CertificationCSA Certified
Special FeatureFront-Facing Outdoor Shower Outlet

Why Source the GWH-4 from Everlead?

  • North American Ready: With CSA Certification and standard US Propane/Cut-out specs, this unit is ready for immediate distribution in the US/Canada RV market.

  • Unique Selling Proposition: The External Shower Outlet feature sets this unit apart from generic tankless heaters, offering a “2-in-1” value prop (Indoor Heater + Outdoor Shower).

  • OEM Flexibility: We offer deep customization options including Panel Color (White/Black/Grey), Flow Rate configuration, and Logo Placement on the door.

Additional information

Feature

Specification
Model

GWH-4 RV Tankless Water Heater
Gas Type

US Standard Propane
Rated Load

65,000 BTU
Flow Rate Options

6L / 8L / 10L (Customizable)
Voltage

DC 12V (Vehicle System)
Temp Range

35°C – 51°C (95°F – 124°F)
Heat Exchanger

TP2 Pure Copper
Water Pressure

10 – 60 PSI
Cut-Out Size

~12.6" x 12.6" (320mm x 320mm)
Net Weight

11.28 KG
Certification

CSA Certified
Special Feature

Front-Facing Outdoor Shower Outlet
